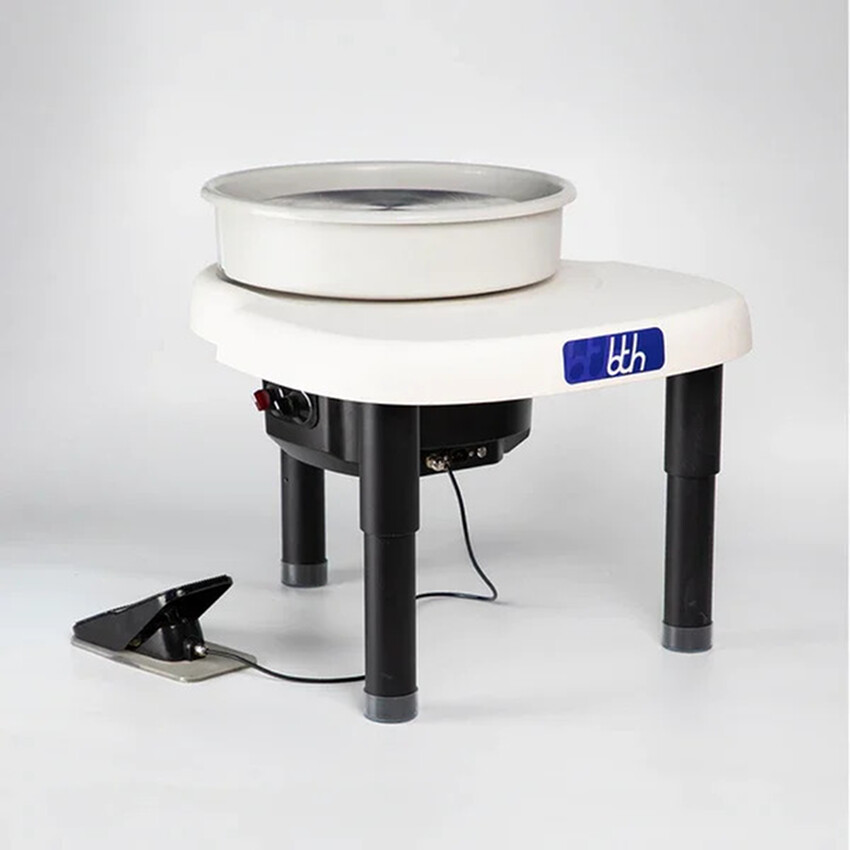

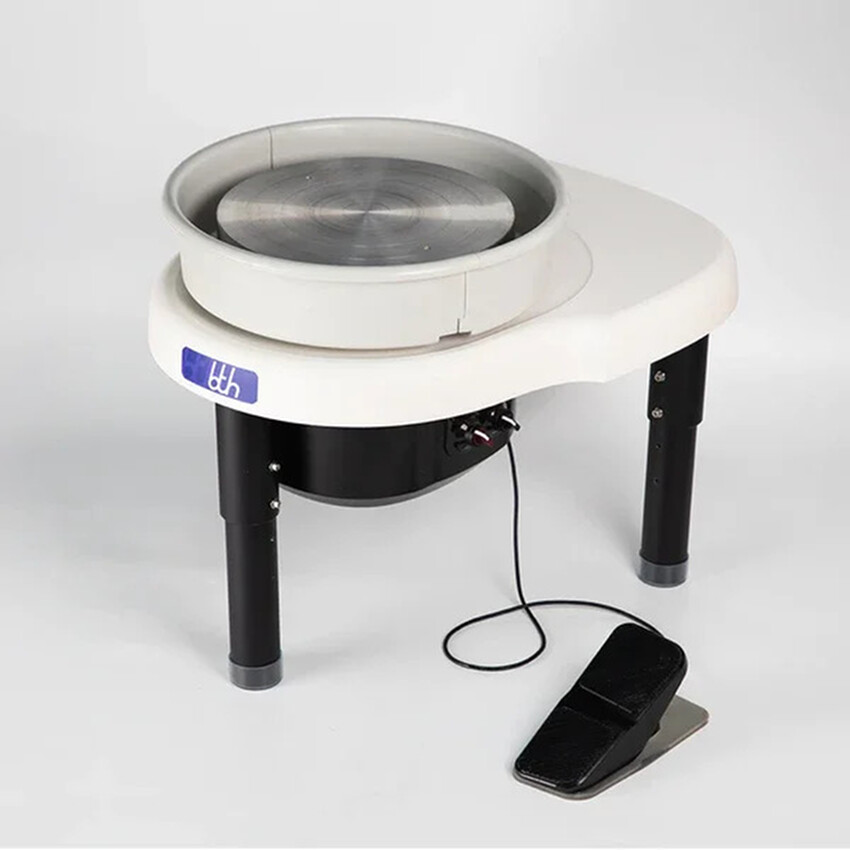

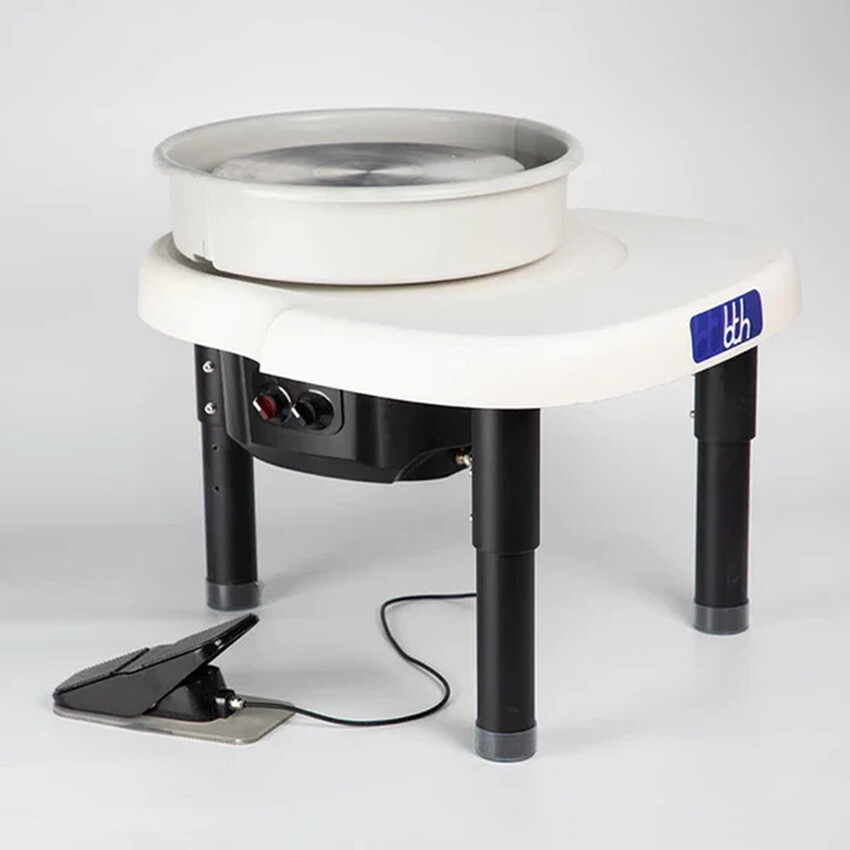

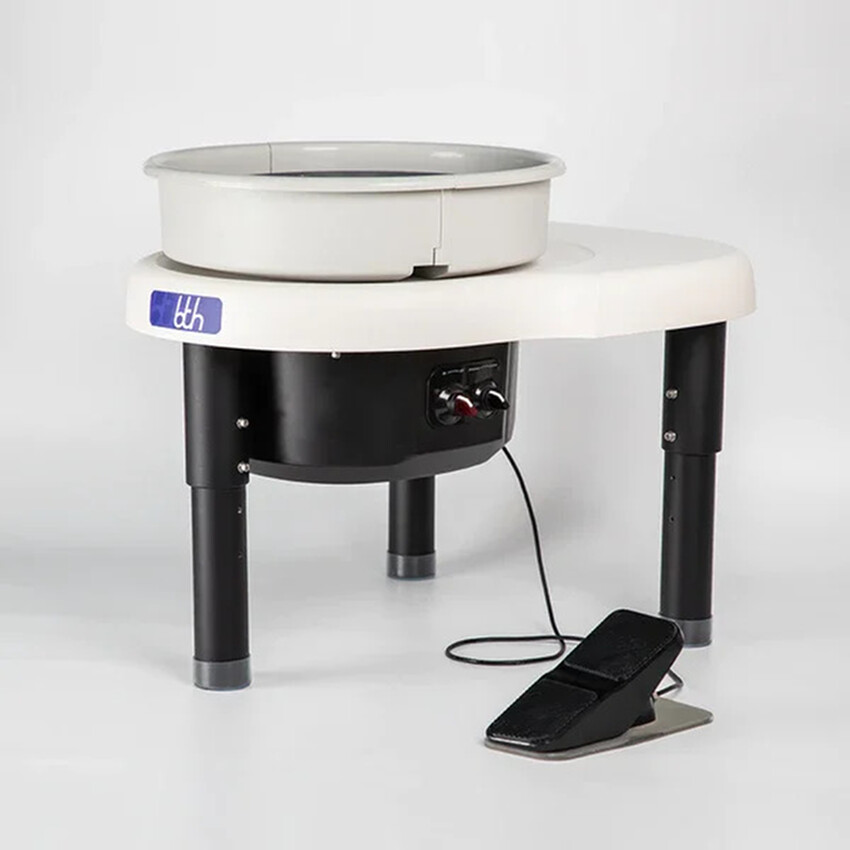

BTH DD03 Andromeda Potters Wheel

ANDROMEDA DD03

The BTH DD03 Andromeda is a quiet, compact powerhouse of a potters’ wheel produced in Jingdezhen. The Andromeda model is a smooth and powerful state-of-the-art, magnetically driven potter's wheel with a 5 year warranty.

Motor

Features a direct drive motor with low noise and powerful torque, ensuring smooth performance even at slow speeds.

Performance

This machine is tested for electromagnetic compatibility and low voltage safety. It offers quick response times and precision control, with minimal runout and vibration.

Design

Crafted with a sleek, anti-static triangular support, made from durable Q235 steel. Waterproof, easy to clean, and adjustable to three height levels - 1ft 4.5in, 1ft 6.5in, 1ft 8.5in (42cm, 47cm, 52cm).

Splash Pan

The magnetic design allows easy attachment and 360° rotation, simplifying cleaning and preventing leaks.

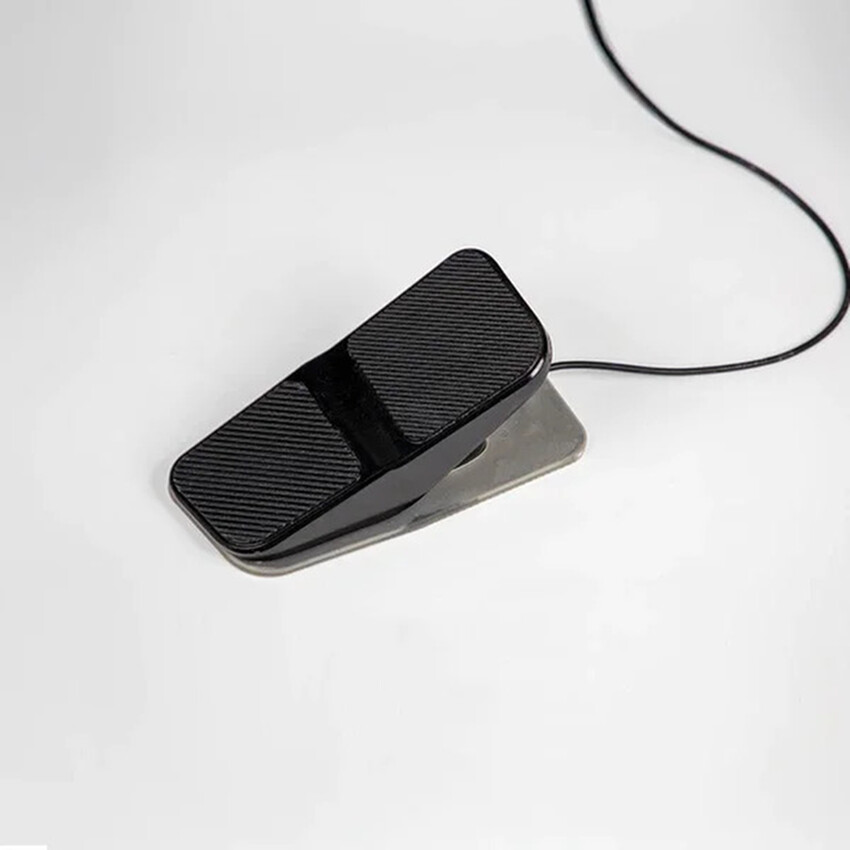

Foot Pedal

Uses Hall effect technology for precise speed control. The aluminum alloy casing is durable, corrosion-resistant, and waterproof, ensuring a long lifespan.

Aluminum Wheel Head

Made from scratch-resistant aluminium alloy, it’s easy to install and ensures stable operation.

Safety

Equipped with national standard anti-leakage plugs, waterproof switches, and a flame-retardant panel. The design enhances impact resistance and overall safety.

(A note from BTH: This product may be harmful to someone with a pacemaker. Please see https://www.potclays.co.uk/potters-wheel-questions/pacemaker-potters-wheel-safety/)

Certification

Passed high-voltage resistance tests (1200V) and complies with international safety and electromagnetic compatibility standards. This machine is ideal for various environments, including residential, commercial, and outdoor spaces.

Features:

+ 14" aluminium wheel-head with bat pin holes 10" on centre (US standard)

+ Unique Start / Stop programmed control prevents the pendulum phenomenon

+ 400 watt, 0-300 RPM DC motor with automatic torque compensation

+ Quiet direct drive (magnetically powered)

+ Load Capacity: (130 lbs/59kg)

+ Forward/reverse wheel-head direction

+ Removable magnetic 2-part splash pan

+ Wheel spins like a banding wheel when powered off

+ Water proof foot pedal uses "The Hall Effect Principle" for smooth control

+ Adjustable legs / 3 levels

+ Designed for tabletop & sit-down throwing

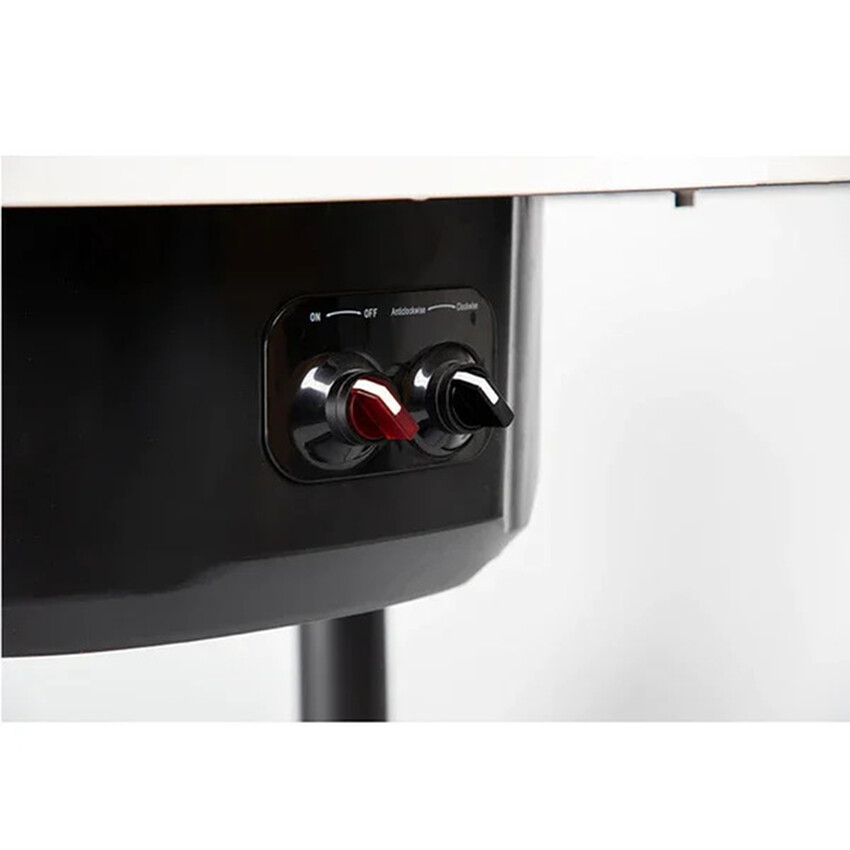

+ UL certified waterproof switch

The LVD low-voltage directive of the product has been tested in accordance with EN 62233:2008 "Measurement methods for human exposure to electromagnetic fields in household and similar electrical appliances" and EN60335-1-2012 "Safety standards for household and similar electrical appliances".

Specifications:

Motor: 400 W, AC110V

130b Centring Capacity

Drive System: Direct Drive

Wheel-head speed: 0~300 rpm

Wheel-head: 14"/355mm, drilled for bat pins

Dimensions: 28"/71cm x 25"/63.5cm x 18"/46cm

Shipping Weight: 50kg

Wheel Weight: 40kg
