ROHDE Ecotop 60S 5kW with ST411 controller

  • Sku - 800-9160
  • Pre-Order
There is currently a 12 week lead time on all Rohde kilns.



Toploaders Ecotop series

The ECOTOP series is a newly designed and developed kiln model among our range of toploading kilns. ECOTOP kilns are most energy-saving kilns and are outstanding in their energy efficiency due to a new insulating concept…

Each (Exc. VAT) Price (Exc. VAT) Quantity
1.00 £3,165.18 £3,165.18
Each (Inc. VAT) Price (Inc. VAT) Quantity
1.00 £3,798.22 £3,798.22

Please type the quantity you require below or add pre-defined quantities using the controls above.

Quantity:
Price each: £3,798.22 £3,165.18
Total Inc. VAT Total Exc. VAT
  • Description

    ROHDE Ecotop 60S 5kW with ST411 controller

    There is currently a 12 week lead time on all Rohde kilns.



    Toploaders Ecotop series

    The ECOTOP series is a newly designed and developed kiln model among our range of toploading kilns. ECOTOP kilns are most energy-saving kilns and are outstanding in their energy efficiency due to a new insulating concept.

    The three-layer insulation structure consists of a 15 mm high-quality, microporous back insulation which allows firing up to usual stoneware temperatures with a regular 230 volt supply.

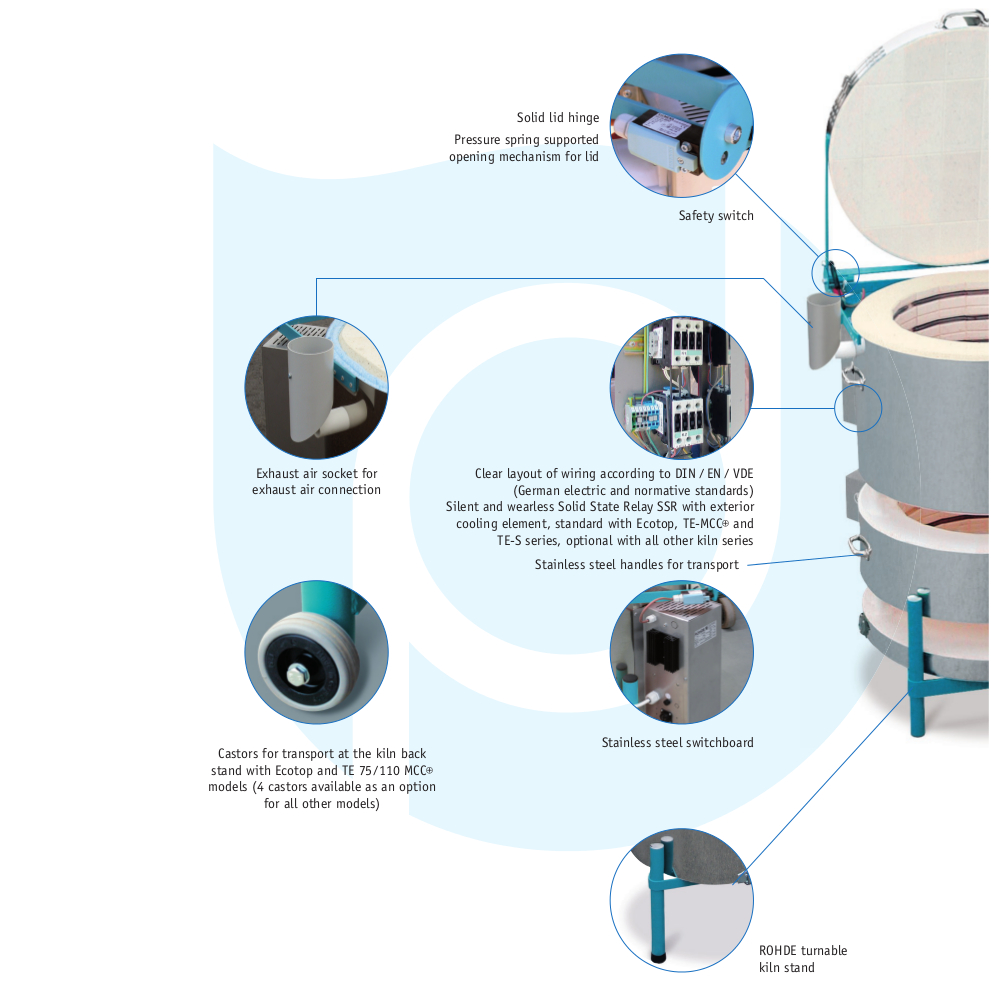

    Special features:

    • Three-layer wall structure with microporous insulation panel
    • Significant increase in energy efficiency, e.g. you can save up to 20% energy with an Ecotop 60 compared to a TE 60 MCC+
    • Silent and wearless SSR with exterior cooling element
    • Ergonomic working position due to ROHDE turnable kiln stand
    • Comfortable and exact kiln controller TC 304 (standard equipment)





    Stock Code Model Tmax Int. W(mm) Int. D(mm) Int. H(mm) Ext. W(mm) Ext. D(mm) Ext. H(mm) Output(kW) Supply Single Phase (Amp) Weight(kg)
    800-9100 ECOTOP 20 1320C ø 330 230 560 560 520 2,3 10 42
    800-9110 ECOTOP43L 1320C ø 400 340 650 700 630 2,9 13 58
    800-9120 ECTOP50 1320C ø 400 380 650 700 725 3,6 16 58
    800-9130 ECOTOP50S 1320C ø 400 380 650 700 725 4,5 19.5 58
    800-9140 ECOTOP60L 1200C ø 400 450 650 700 740 2,9 13 60
    800-9150 ECOTOP60 1320C ø 400 450 650 700 740 3,6 16 60
    800-9160 ECOTOP60S 1320C ø 400 450 650 700 740 5,0 21 60

    Rohde kilns are typically built to order and therefore will be showing as out of stock on our website. Please place an order regardless and we will contact you to formalise the delivery within the following few weeks.



    IMPORTANT NOTICE REGARDING ROHDE DELIVERIES

    All deliveries MUST be checked before signing. A ‘clear’ signature indicates acceptance of the delivery in good condition. If any issues are subsequently discovered, Rohde/Potclays will not be held responsible. The following procedure must be adhered to:

    1. Check the goods by opening the box and examining it for damage; if damaged, sign – damaged

    2. If the shock-watch is red, sign as shock-watch activated regardless of what the subsequent checking reveals

    3. If there is a small empty box on top of the consignment (usual on top loaders) and it is flattened make a note, box damaged.

    4. If it is not possible to open the kiln box (in the presence of the delivery driver) to check the goods, sign as unchecked. Just because the box looks OK, the goods may not be OK.

    5. Essentially unless you are really sure (by checking) that the goods are undamaged there should be a note on the receiving papers, either unchecked, shock-watch activated or box damaged.
