There is currently a 12 week lead time on all Rohde kilns.
Â

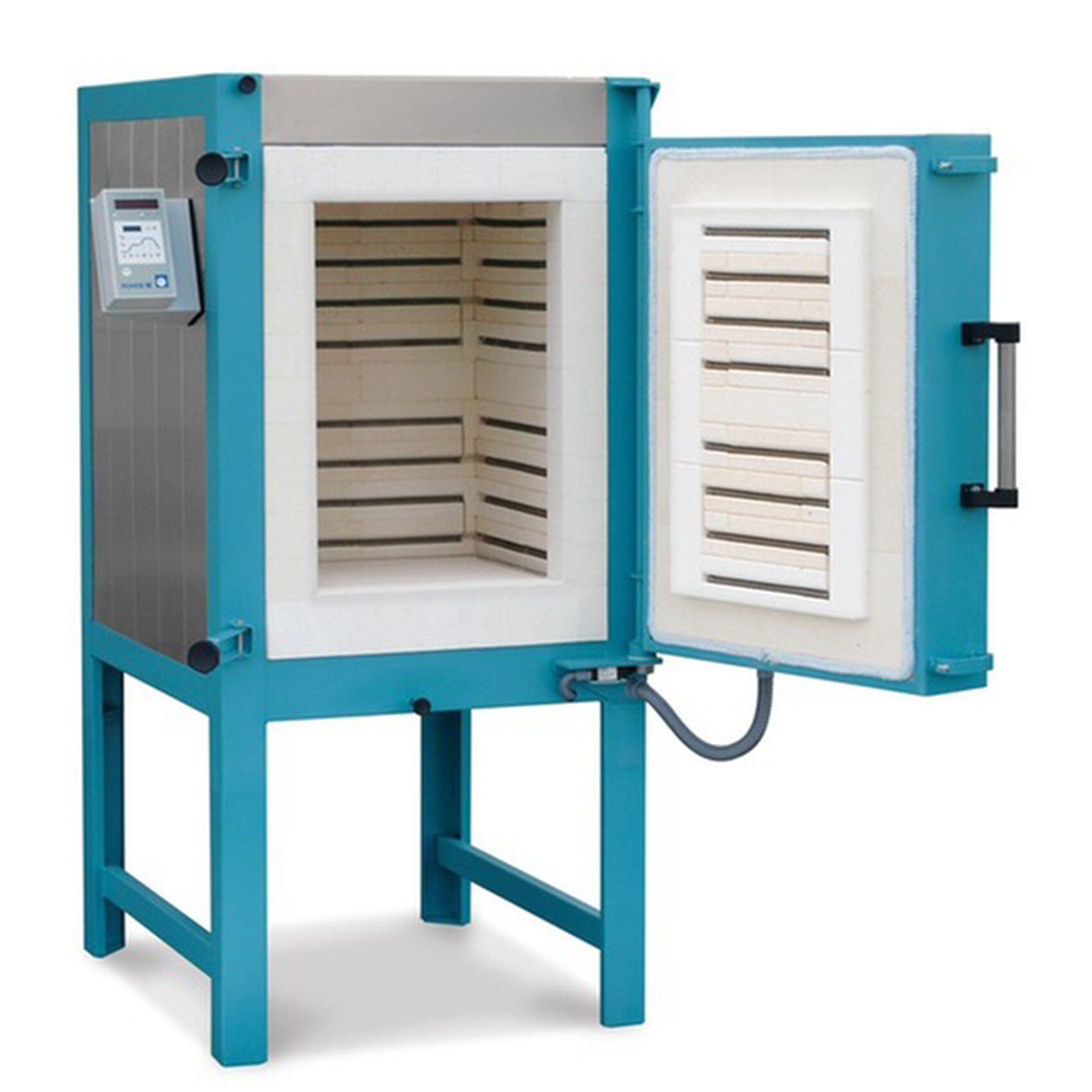

KE Rohde Front Loader
The ROHDE KE-N kiln series comprises six models with kiln sizes between 100 and 480 litres. The heating elements are recessed into the firebricks on all five wall sides.
The KE-N Frontloader series has been designed for workshop and school applications. Recessing the heating elements in grooved bricks protects them when the kiln is being charged and allows even distribution of heat throughout the firing chamber.
It enables us to apply very economic production methods which again leads to attractive pricing. The firing results can be compared to those of a kiln with heating elements mounted on rods. Of course we have incorporated the unique features of all ROHDE Frontloaders into this kiln series:
- The entire steel construction is in-frame ventilated preventing corrosion and at the same time reducing surface temperatures.
- The insulation consists of two layers. We use only high-quality, reduction-resistant insulating firebricks inside the firing chamber.

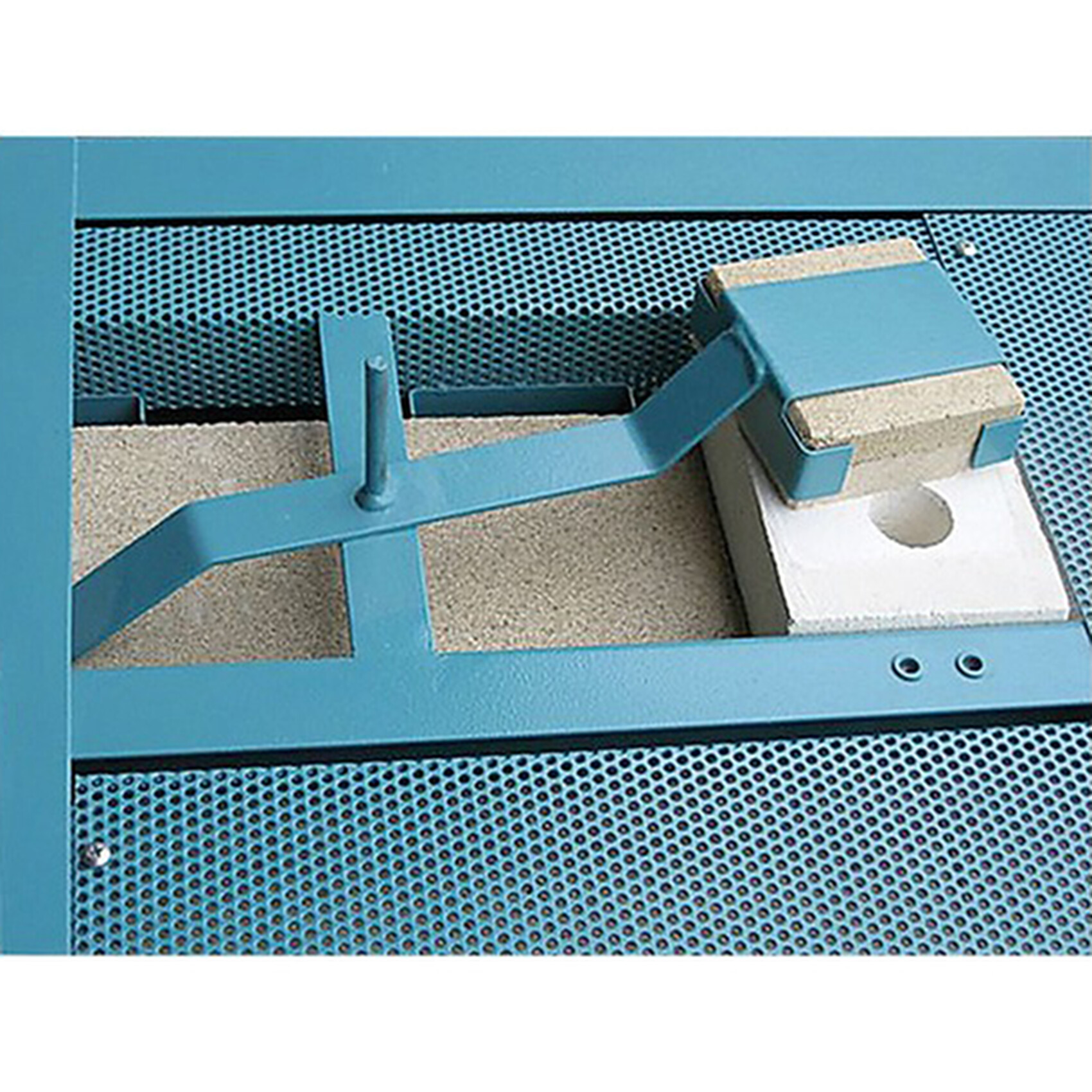

- We also use our proven ROHDE ceiling construction system which has been used successfully for more than 20 years. The combination of ceiling supports made from high-quality industrial ceramics and precision-fitted insulating firebricks prevents any particles falling from the ceiling onto the goods.
Â
Click to enlarge| Stock Code | Model | Tmax | Int. W(mm) | Int. D(mm) | Int. H(mm) | Ext. W(mm) | Ext. D(mm) | Ext. H(mm) | Output(kW) | Supply (Amp) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 800-98140 | KE 100 N | 1300 | 410 | 480 | 530 | 750 | 1050 | 1700 | 6.6 | 30 (sp) | 323 |
| 800-98150 | KE 150 N | 1300 | 470 | 480 | 680 | 800 | 1050 | 1780 | 9 | 42 (sp) | 375 |
| 800-98161 | KE 200 N | 1300 | 470 | 640 | 680 | 800 | 1210 | 1780 | 11 | 48 (sp) | 415 |
| 800-98170 | KE 250 N | 1300 | 530 | 640 | 760 | 870 | 1210 | 1800 | 13.7 | 66 (sp) | 471 |
| 800-98180 | KE 330 N | 1300 | 590 | 720 | 790 | 920 | 1280 | 1800 | 16.5 | 25 | 531 |
| 800-98190 | KE 480 N | 1300 | 640 | 780 | 990 | 980 | 1340 | 1830 | 22 | 32 | 641 |
The delivery cost for this kiln is estimated and that further charges may apply. Please contact us for details.
If you require special delivery arrangements please contact us.
|
IMPORTANT NOTICE REGARDING ROHDE DELIVERIES All deliveries MUST be checked before signing. A ‘clear’ signature indicates acceptance of the delivery in good condition. If any issues are subsequently discovered, Rohde/Potclays will not be held responsible. The following procedure must be adhered to: 1. Check the goods by opening the box and examining it for damage; if damaged, sign – damaged 2. If the shock-watch is red, sign as shock-watch activated regardless of what the subsequent checking reveals 3. If there is a small empty box on top of the consignment (usual on top loaders) and it is flattened make a note, box damaged. 4. If it is not possible to open the kiln box (in the presence of the delivery driver) to check the goods, sign as unchecked. Just because the box looks OK, the goods may not be OK. 5. Essentially unless you are really sure (by checking) that the goods are undamaged there should be a note on the receiving papers, either unchecked, shock-watch activated or box damaged. |
