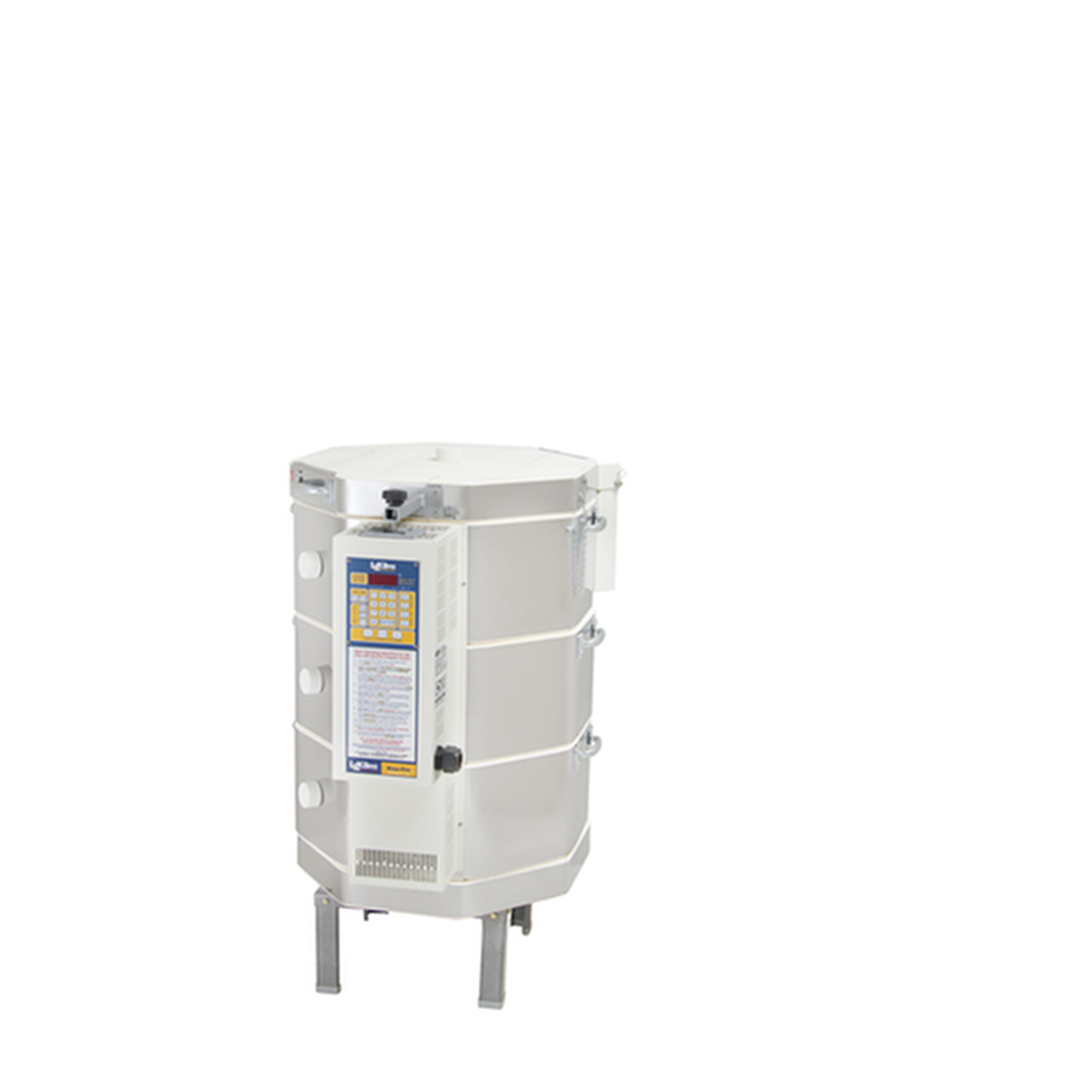

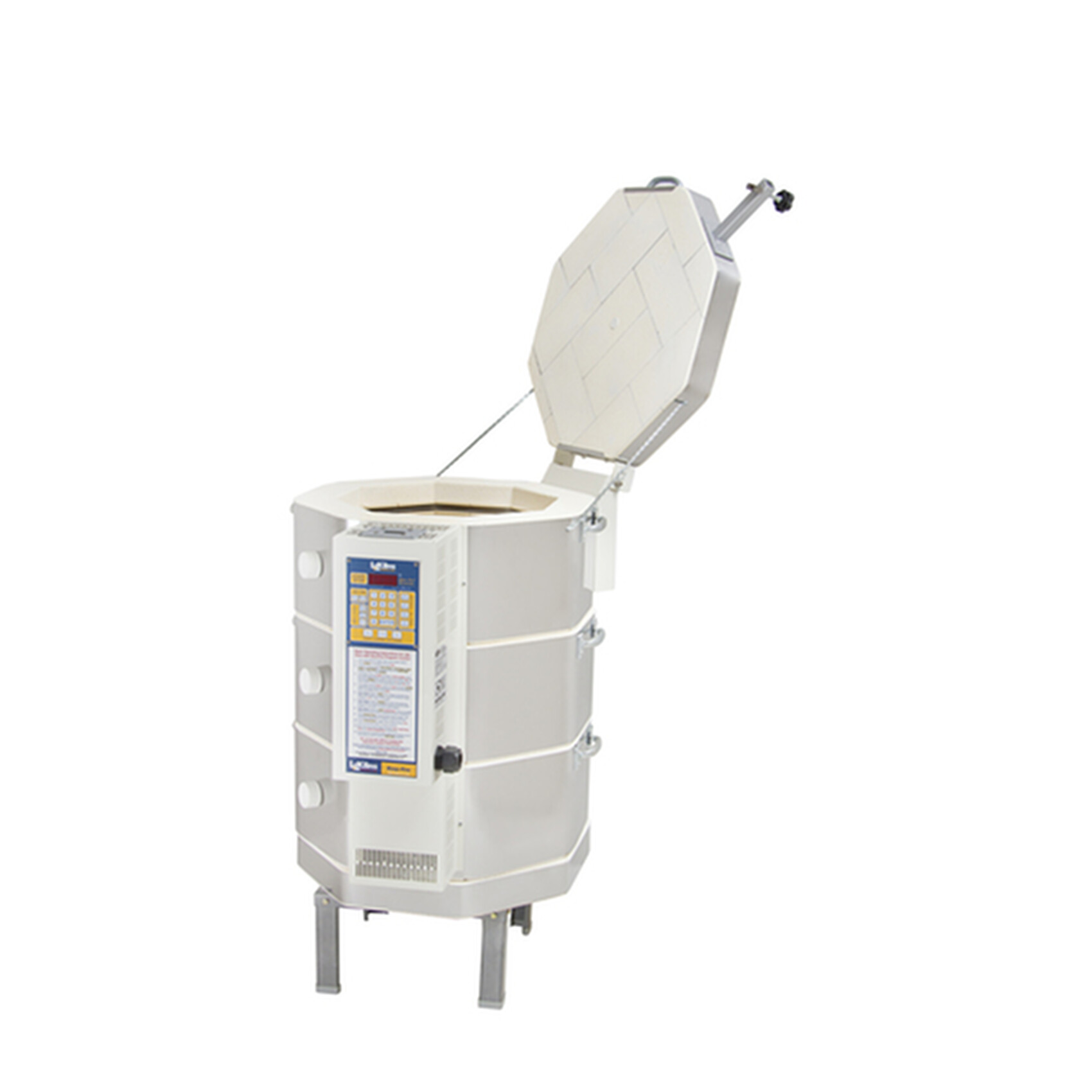

L&L Easyfire 18T T/L Pottery Kiln, 105lt + Dynatrol controller. 1+3 Phase

About

800-8045 Easyfire 18T Toploading kiln with controller (80LLE18T)

• External dimensions       68.8cm (28"0 wide x 74.4cm (29.3") depth x 95.5cm (37.6") high 160.2cm (63") high lid open
• Internal dimensions        42cm(16.5")diam x 68.6cm (27")high
• Kiln capacity                  105lts 3.75cf
• Electrical specification    8.79kW three phase 13.3amps, single phase 39.9amps 230volt 1phase
• Max. firing temperature  1290C
• Shipping weight             120kg

Extras/Spares:
18T Furniture Set order here>
18T Spare Element Set order here>
18T Spare Thermocouple Element order here>
To minimise kiln downtime, it is advisable to keep a spare set of elements and a spare thermocouple element to one side at all times.

Potclays are the exclusive importers to the British Isles for L&L Kilns who are one of the leading builders of craft and industrial kilns in the USA. The scale of their top loader operation enables high quality kilns at competitive prices. The hardened clay element holders are a major feature of all of the L&L kilns that we sell. They protect delicate brickwork. These patented holders also improve heat transmission providing greater firing efficiency. Other features include:

• Easy maintenance using the hinge down outer switch housing and quick release inner housing,
• High specification and intuitive Dynatrol controllers which offer custom programming as well as pre-set firing programs including controlled cooling,
• Facility for delayed start and pre-heat which is perfect for out of hours firing,
• A reversible base to extend life if damaged by glaze drips etc.,
• Spring assisted lid lift with added metal support across the lid to reduce brick stress and increase kiln life,

• Sectional construction to facilitate easy transportation,
• Multi-zone control to optimise temperature uniformity throughout the kiln.

The construction of the top loader gives a lower capital cost and a quicker cooling rate: factors which will be appreciated in busy production situations.

Top loading kilns can be seen to give a very good capacity/price ratio. The simple maintenance of the kilns ensures that they offer many years of trouble free operation.

Photographs are for illustrative purposes only

Features

Performance

Automatic Zone Control

Zone control gives you the utmost in controllable temperature uniformity.

DynaTrol Multi-Program Zone Control

Four preset ceramic programs and six custom programs with eight segments each.

Thermal Ceramics Firebrick

K23 firebrick combines good insulation with strength

Durability

Hard Ceramic Element Holders Make L&L Kilns More Durable

Durability, Repairability, Better Heat Transfer

Thermocouple Protection Tubes

Mullite protection tubes extend thermocouple life and keep kiln clean

Solid Super-Strong Aluminized Steel Stand

Aluminized stands are extremely strong and corrosion resistant.

Thick 8 Gauge Thermocouples

Thick 8 gauge thermocouples last a long time.

Proprietary Reflective Coating Hardens & Seals Brick

Special brick coating hardens and seals brick for durability and cleaner operation.

Stainless Clips Secure Lids to Bands

Stainless Steel clips help the lid stay secure and durable.

Corrosion Resistant Case

Corrosion resistant materials and methods result in a long-lasting kiln.

Redundant Case Clamps

Three case clamps are redundant safety for your L&L kiln.

Ease of Use

"Easy-Open, Easy-Load" Spring Hinge

Feather-light spring hinge allows full access without a side support bar - for easy loading. Standard on all 10 and 10 sided polygonal kilns.

Solid Wide-View Peephole Plugs

Solid large non-tapered peepholes allow a wider view into the kiln.

Simple Strong Hinge with Wide-Angle Opening

This is used on top-loading kilns that are 8 sided or less

Support

Superior Technical Support

The combined experience at L&L and Potclays in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.

Standard Three-Year Limited Warranty

Most L&L Kilns have a three-year limited warranty.

Serviceability

Molded Ceramic Industrial-Grade Element Connection Blocks

Industrial grade ceramic terminal blocks make changing elements easy.

Easy to Remove & Service Control Panel (Easy-Fire, eQuad-Pro)

Remove two screws and a few plug-on wires and the panel disconnects in 5 minutes.

Sectional Kiln Construction for Easy-Fire and eQuad-Pro kilns

Sectional kiln construction makes kilns easy to move, set up and disassemble for maintenance.

Reversible Bottoms

The bottom can be easily reversed in case of a firing mishap.

Safety

Listed to UL499 Standard by MET and CE compliant

Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire. Jupiter. DaVinci, School-Master, Liberty-Belle. Hercules & Easy-Load kilns areMET-Us Listed for US only.

On-Off Switch and Panel Fuse

All L&L Kilns come with an on-off switch

We are installing red, plastic clips over our L&L element holders to prevent elements from jumping out during shipping. Please follow the instructions to remove them before firing.

Image for illustration purposes only
