There is currently a 12 week lead time on all Rohde kilns.
Â

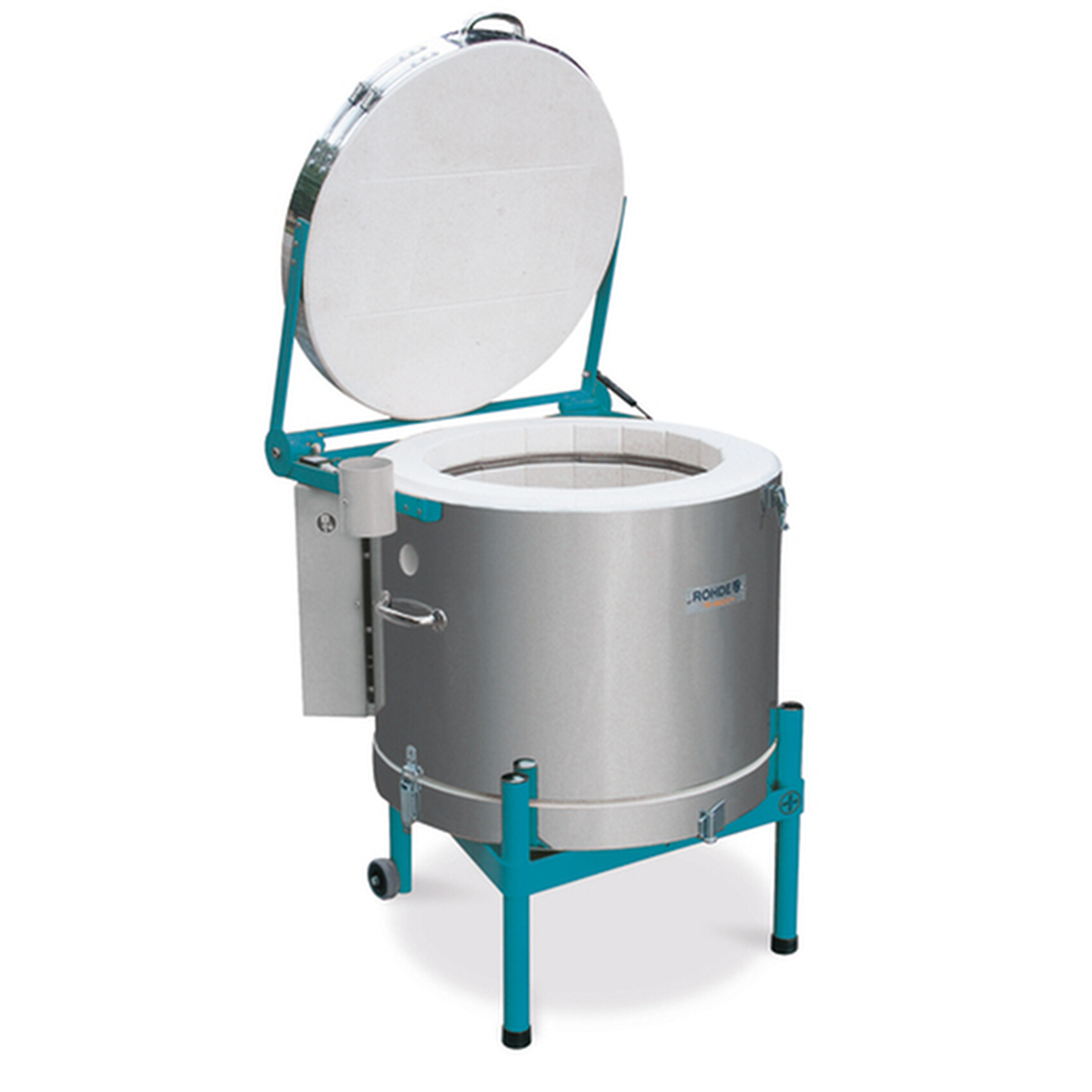

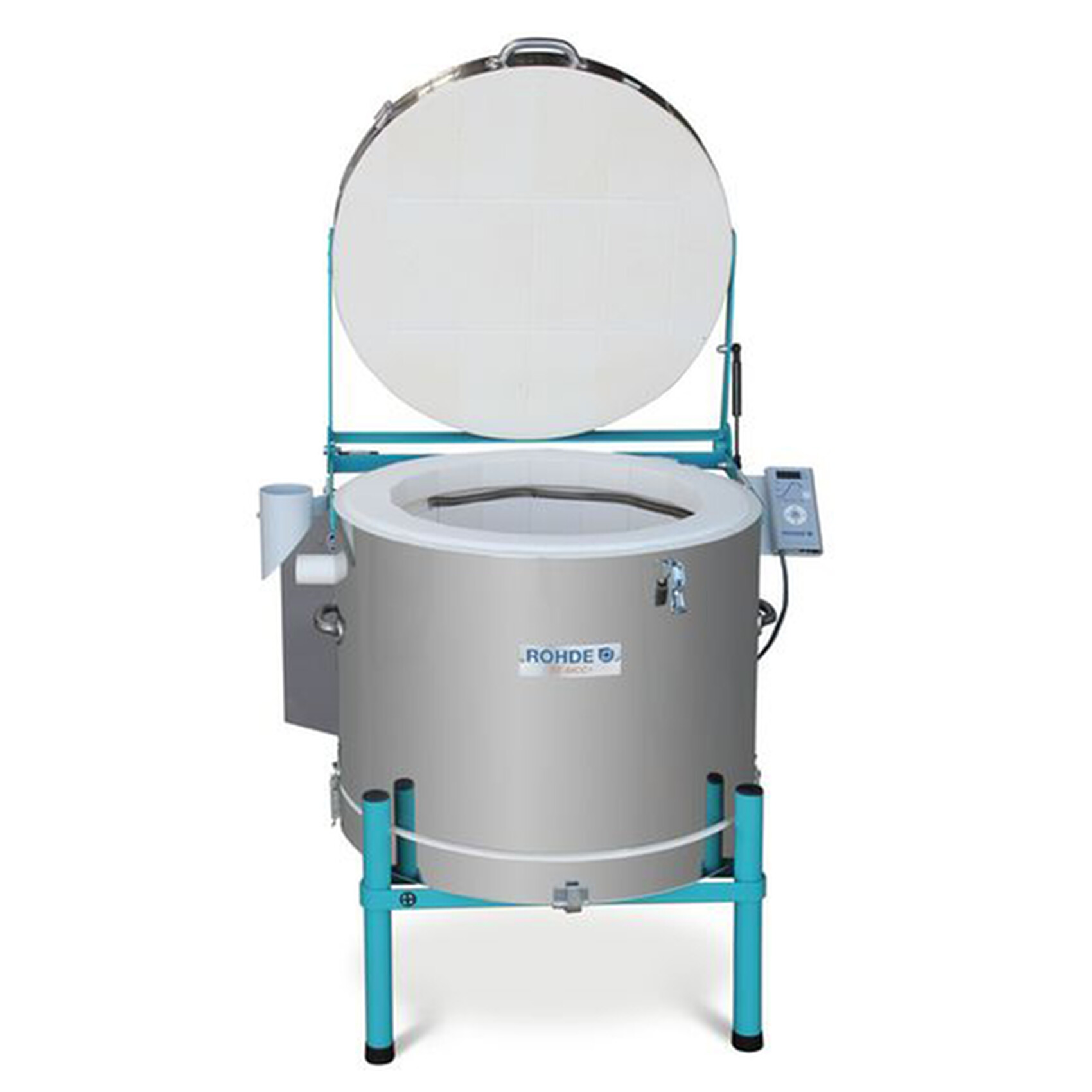

TE-MCC+ Toploader Series including furniture set
The solid TE-MCC+ kilns are suitable for many applications from glass processing at 600°C to low stoneware at 1220°C.
This kiln series has been designed for applications in schools and kindergartens, as well as for artists and hobby workshops. The MCC+ series offers most possible flexibility for artistic applications with ceramics and glass due to its wide range of temperatures.
In addition to the extensive equipment and the high-quality workmanship of our toploaders we would also like to point out the following features:
Furniture set includes 4 round bats, 470Ø x 12mm 3 set of props, sets contain 3x25mm, 3x50mm, 3x75mm and 3x100mm props
All kiln models can be disassembled for transport into up to four compact pieces. All kiln parts are equipped with ergonomically designed devices for transport. It is possible to have the single parts transported to almost any desired location by only two persons. Even if you encounter a narrow passage, for a TE 300 a door width as little as 55 cm is sufficient.
Four models of the TE-MCC+ series can be extended by 50 % at any time by simply inserting a so-called supplementary ring (ZWR).
- TE 75 MCC+ can be extended to 110 litres
- TE 100 MCC+ can be extended to 150 litres
- TE 130 MCC+ can be extended to 190 litres
- TE 200 MCC+ can be extended to 300 litres
Insert the ring, plug in the kiln and continue working with 50 % more space. The kiln that meets your requirements at any time!
After a safe delivery this ROHDE designed kiln stand enables you to adjust the toploader to an improved working height. It makes loading and unloading the firing chamber less strenuous for your back.
| Stock Code | Model | Tmax | Int. W (mm) ø | Int. H (mm) | Ext. W (mm) | Ext. D (mm) | Ext. H (mm) | Output (kW) | Supply Single Phase(Amp) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 800-9200 | TE75MCC+ | 1250°C | 470 | 450 | 720 | 740 | 800 | 6 | 26 | 82 |
| 800-9210 | TE110MCC+ | 1250°C | 470 | 680 | 720 | 740 | 1030 | 9 | 39 | 105 |
| 800-9220 | TE100MCC+ | 1250°C | 520 | 450 | 800 | 830 | 800 | 7 | 30 | 89 |
| 800-9230 | TE150MMC+ | 1250°C | 520 | 680 | 800 | 830 | 1030 | 10.5 | 45 | 109 |
| 800-9240 | TE130MMC+ | 1250°C | 590 | 460 | 830 | 880 | 800 | 7.3 | 32 | 106 |
| 800-9250 | TE190MCC+ | 1250°C | 590 | 690 | 830 | 880 | 1030 | 11 | 48 | 125 |
| 800-9260 | TE200MCC+ | 1250°C | 740 | 450 | 1000 | 1050 | 800 | 9.2 | 40 | 130 |
| 800-9270 | TE300MCC+ | 1250°C | 740 | 690 | 1000 | 1050 | 1030 | 13.8 |  | 190 |
Â
If you require special delivery arrangements please contact us.
|
IMPORTANT NOTICE REGARDING ROHDE DELIVERIES All deliveries MUST be checked before signing. A ‘clear’ signature indicates acceptance of the delivery in good condition. If any issues are subsequently discovered, Rohde/Potclays will not be held responsible. The following procedure must be adhered to: 1. Check the goods by opening the box and examining it for damage; if damaged, sign – damaged 2. If the shock-watch is red, sign as shock-watch activated regardless of what the subsequent checking reveals 3. If there is a small empty box on top of the consignment (usual on top loaders) and it is flattened make a note, box damaged. 4. If it is not possible to open the kiln box (in the presence of the delivery driver) to check the goods, sign as unchecked. Just because the box looks OK, the goods may not be OK. 5. Essentially unless you are really sure (by checking) that the goods are undamaged there should be a note on the receiving papers, either unchecked, shock-watch activated or box damaged. |
