Firemaster 6 Board only

About

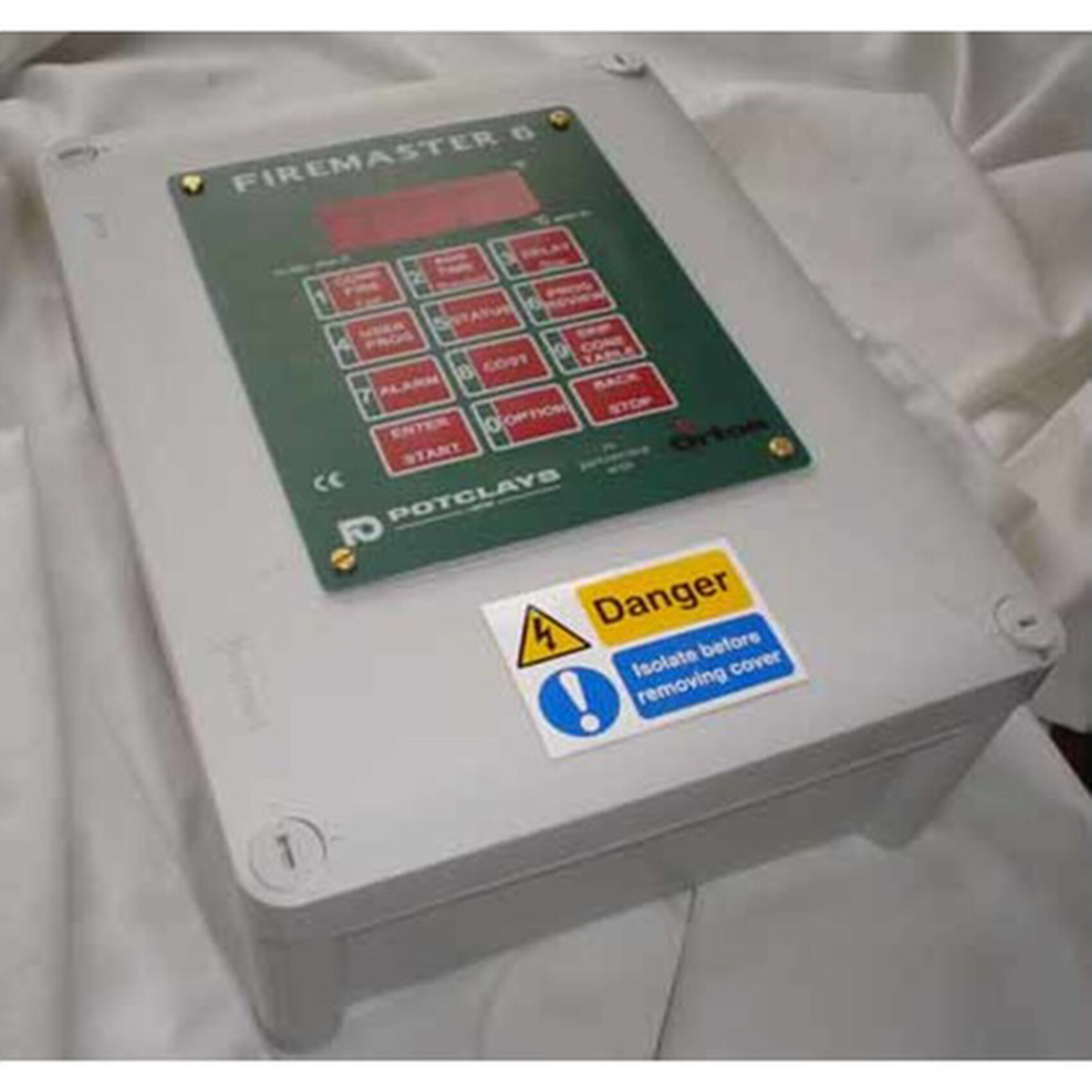

814-6012 - Potclays Firemaster 6 (in 190x240x95mm Wallbox with all components).

The Firemaster 6 controller accepts types R, S and K thermocouples for use up to 1320°C. It is a high specification single zone controller. It can be programmed either by simply entering a cone number for accurate heatwork, or by specifying up to 10 segments - each with two ramps, two soaks and one damper/fan instruction. Nine programs can be stored. Ramps can be full on, soaks can be indefinite. Features include delay start, re-program during firing, segment skip, damper & alarm outputs, extensive error detection and handling. Displays temperature, energy usage & cost, cone lookup table. Large easy-to-see-easy-to-use buttons. The Firemaster 6 is available in panel form (code 814- 6025); as a kit of panel, transformer and relays (code 814-6020); or as a complete assembled stand-alone control box (no external contactor needed on kilns below 20amps) (code 814-6012).

Image for illustration purposes only
