ST215C controller with HAN7

About

• 32 fully adjustable programs
• 32 segments per program
• 1 controlled heating / cooling ramp + 1 soak per segment
• Ideal for glass or ceramics use
• Soak times up to nearly 100 hours
• Ramp rates from 1 to 999°/hour + full
• Programs can be reviewed or altered while firing
• Program Pause & Segment Advance facilities
• Keyboard lockable
• Delayed start facility - up to 4 days
• Power failure recovery
• Energy used display
• Worldwide operation
• °C/°F switchable display
• Standard alarm / safety relay with alarm buzzer
• Optional event / damper / fan relay
• Pre-loaded with 10 standard ceramics programs & 9 standard glass programs which can be altered as required

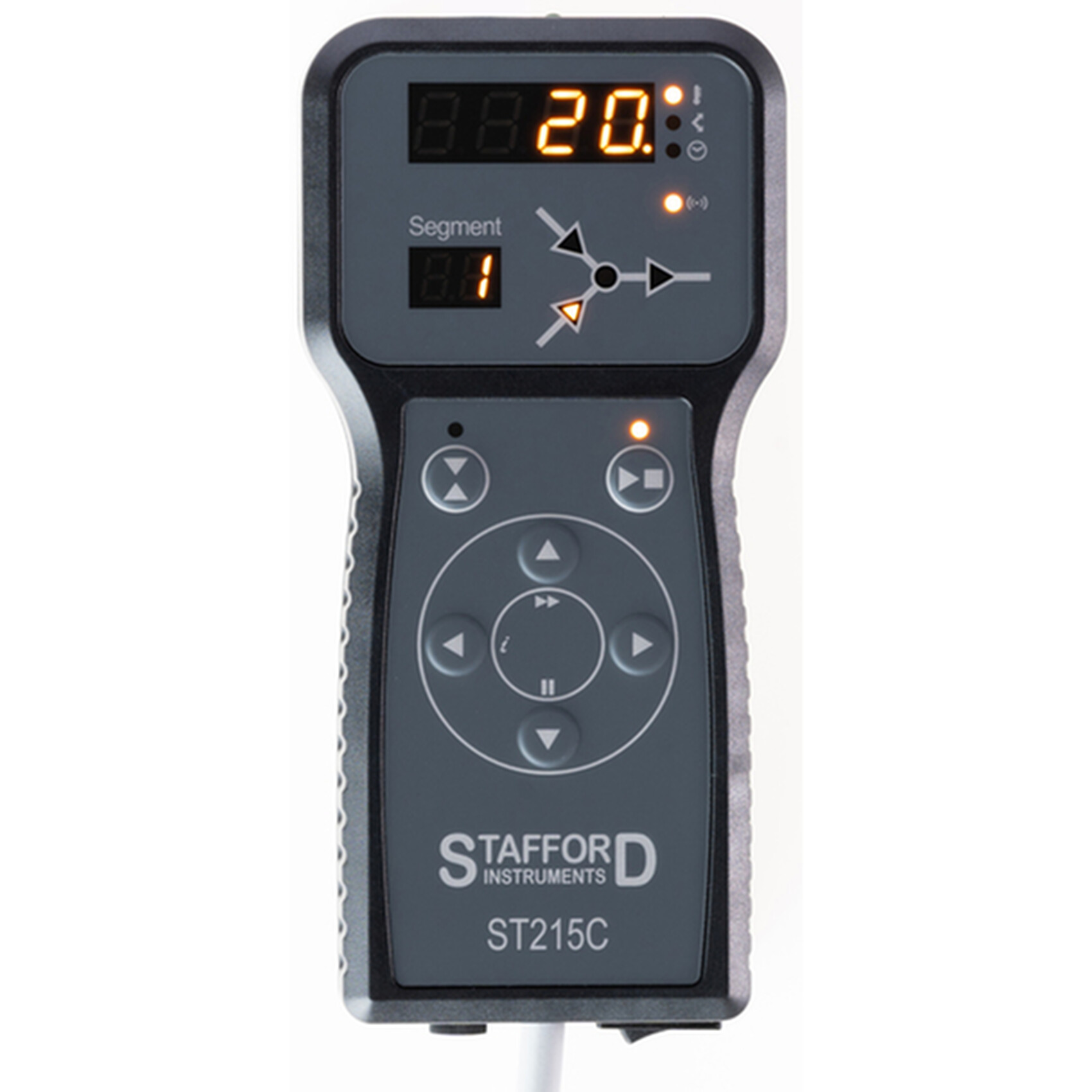

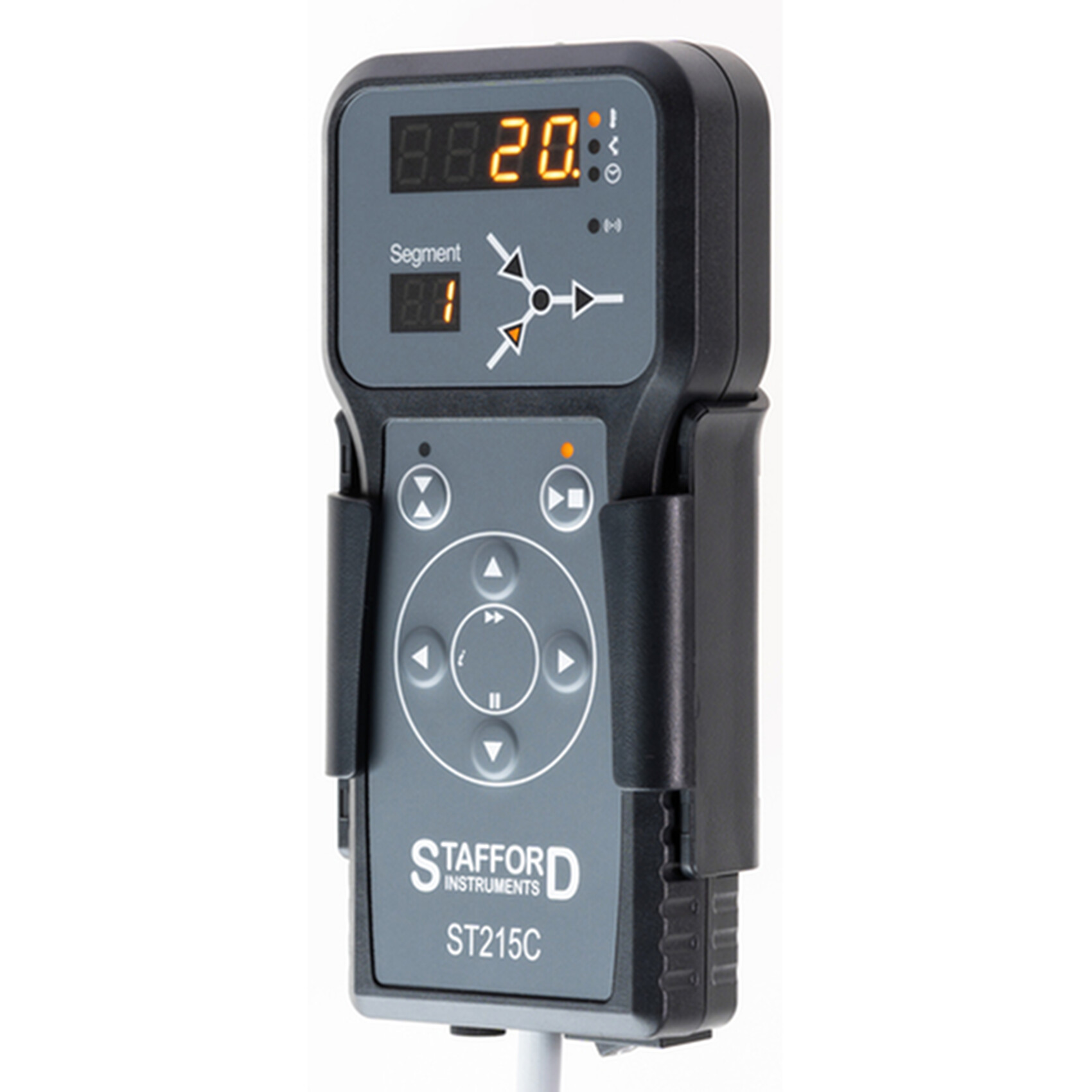

The ST215 is a small easy to use ergonomically designed controller in a hand-held case with rubber hand grips. It is supplied with a wall mounting holster bracket and a flexible lead and plug as standard. Bright orange LED displays are fitted. The ST215 is designed to control single zone electric kilns and is derived from our long established ST315 controller. It is suitable for worldwide use with a universal power supply and selectable °C/°F operation.

Each segment comprises of a ramp followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to the soak temperature where it dwells for the required period then executes the next segment. The end of the program is marked by selecting ‘End’ while entering a ramp rate. Natural cooling then follows.

The ST215 can be configured to the kiln using a configuration menu. The thermocouple type and kiln power rating (for the energy used function) can be configured together with °C/°F operation. Other installer-configurable items include power failure recovery enable/disable, error message handling and control parameters.

Image for illustration purposes only
