ST215C Kiln Controller with Wi-Fi & USB interface

About

• ST215C Kiln Controller,2m lead,Han 7d plug,WiFi
• 32 fully adjustable programs
• 32 segments per program
• 1 controlled heating / cooling ramp + 1 soak per segment
• Wi-Fi & USB interface for datalogging, remote monitoring & control
• Ideal for glass or ceramics use
• Soak times up to nearly 100 hours
• Ramp rates from 1 to 999°/hour + full
• Programs can be reviewed or altered while firing
• Program Pause & Segment Advance facilities
• Keyboard lockable
• Delayed start facility - up to 4 days
• Power failure recovery
• Energy used display
• Worldwide operation
• °C/°F switchable display
• Standard alarm / safety relay with alarm buzzer
• Optional event / damper / fan relay
• Pre-loaded with 10 standard ceramics programs & 9 standard glass programs which can be altered as required

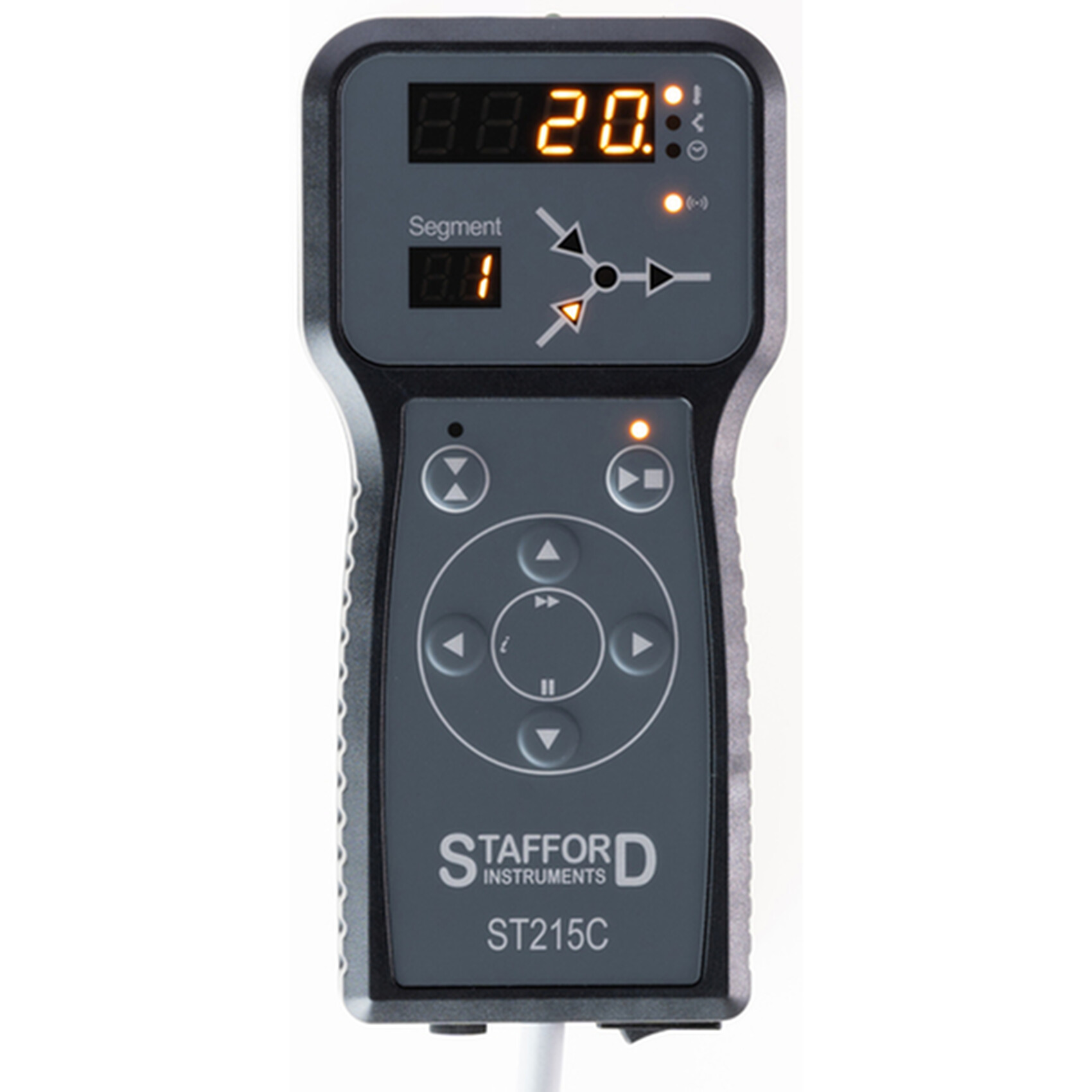

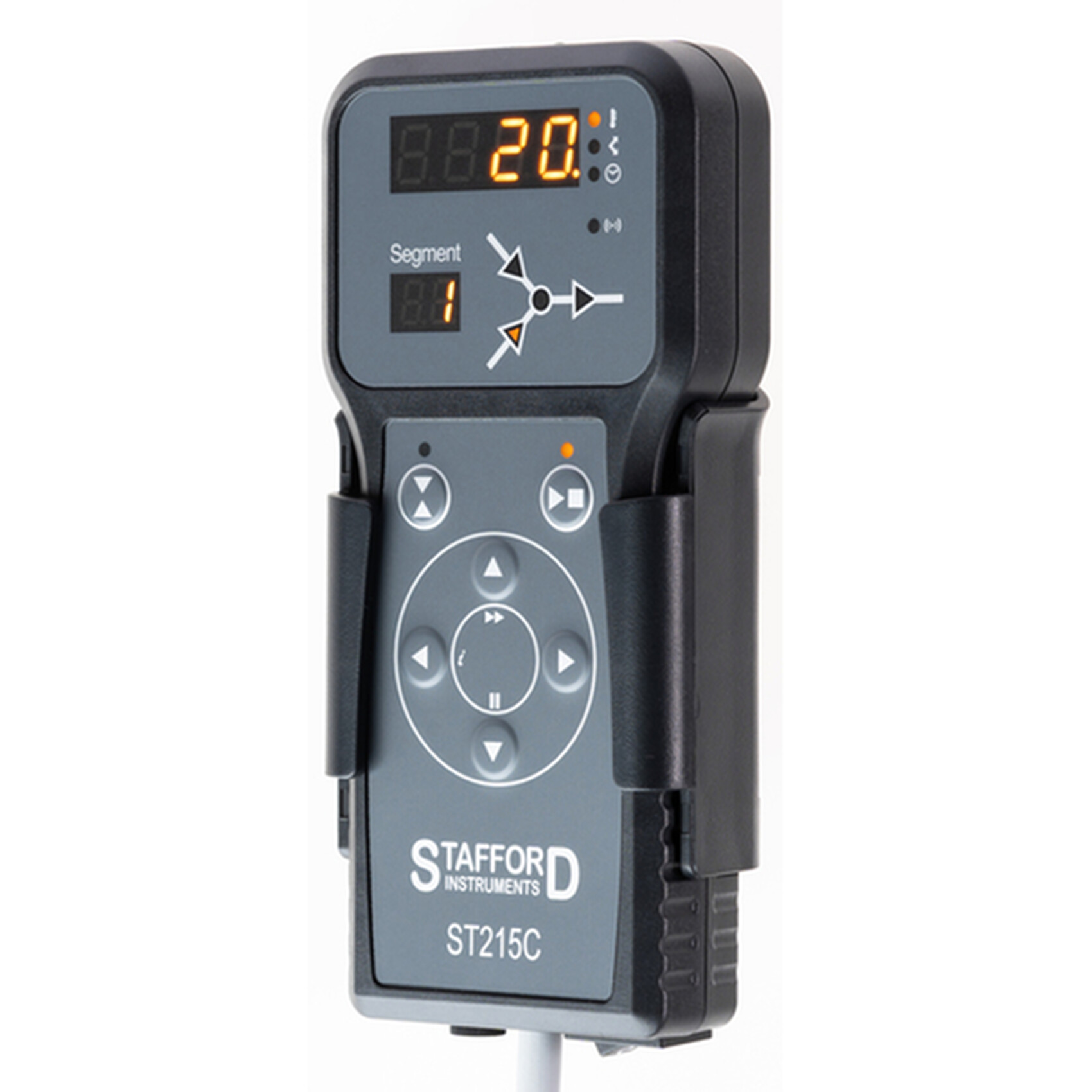

The ST215C is a small easy to use ergonomically designed controller in a hand-held case with rubber hand grips. It is supplied with a wall mounting holster bracket and a flexible lead and plug as standard. Bright orange LED displays are fitted. The ST215C is designed to control single zone electric kilns. It is suitable for worldwide use with a universal power supply and selectable °C/°F operation. The ST215C offers power surge protection, advanced diagnostics and protection including over-temperature safety.
