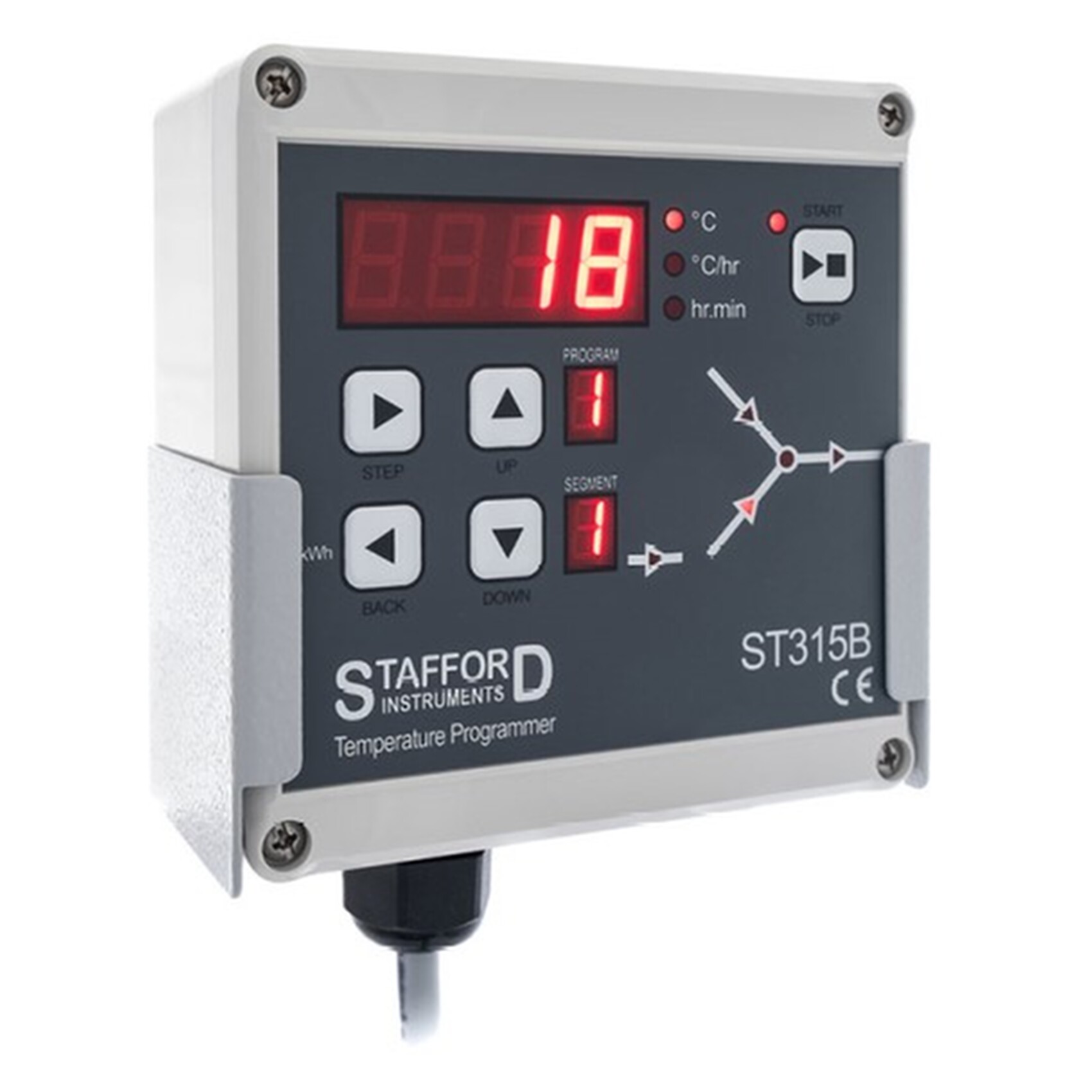

814-6073 Stafford ST315B kiln temperature controller

The Stafford ST315B is a 9-program kiln temperature controller designed predominantly for ceramic and glass electric kilns. Each program can have up to 9 segments. The controller is fully adjustable with a detailed 5-lamp mimic display & continuous display of program & segment numbers. Each segment comprises a ramp followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to the soak temperature where it dwells for the required period then executes the next segment. The end of the program is marked by selecting ‘End’ while entering a ramp rate. Natural cooling then follows.

 The Stafford ST315B Kiln Temperature Controller features:

• 9 programmes each with 9 segments. 1 controlled heating / cooling ramp + 1 soak per seg
• Ideal for both and glass ceramics use
• Soak times up to nearly 100 hours
• Ramp rates from 1 to 999°C/hour + full
• Programs can be reviewed or altered while firing
• Program Pause & Segment Advance facilities
• Keyboard lockable
• Delayed start facility - up to 4 days
• Power failure recovery
• Energy used display
• Standard alarm / safety relay with alarm buzzer
• Complete with wall mounting bracket and User Manuals

The ST315B is supplied with Signal relays driving contactors within the kiln, for the powered version that directly operates a kiln up to 20amps see the ST315BP.  The controller has advaced diagnostics and protection including power surge protection and over-temperature safety. The ST315B is supplied without plug and leads which are available if required.
