ST315CP Controller with 3 PIn Plug, 120mm Thermocouple & 2 meters of Compensating Cable

About

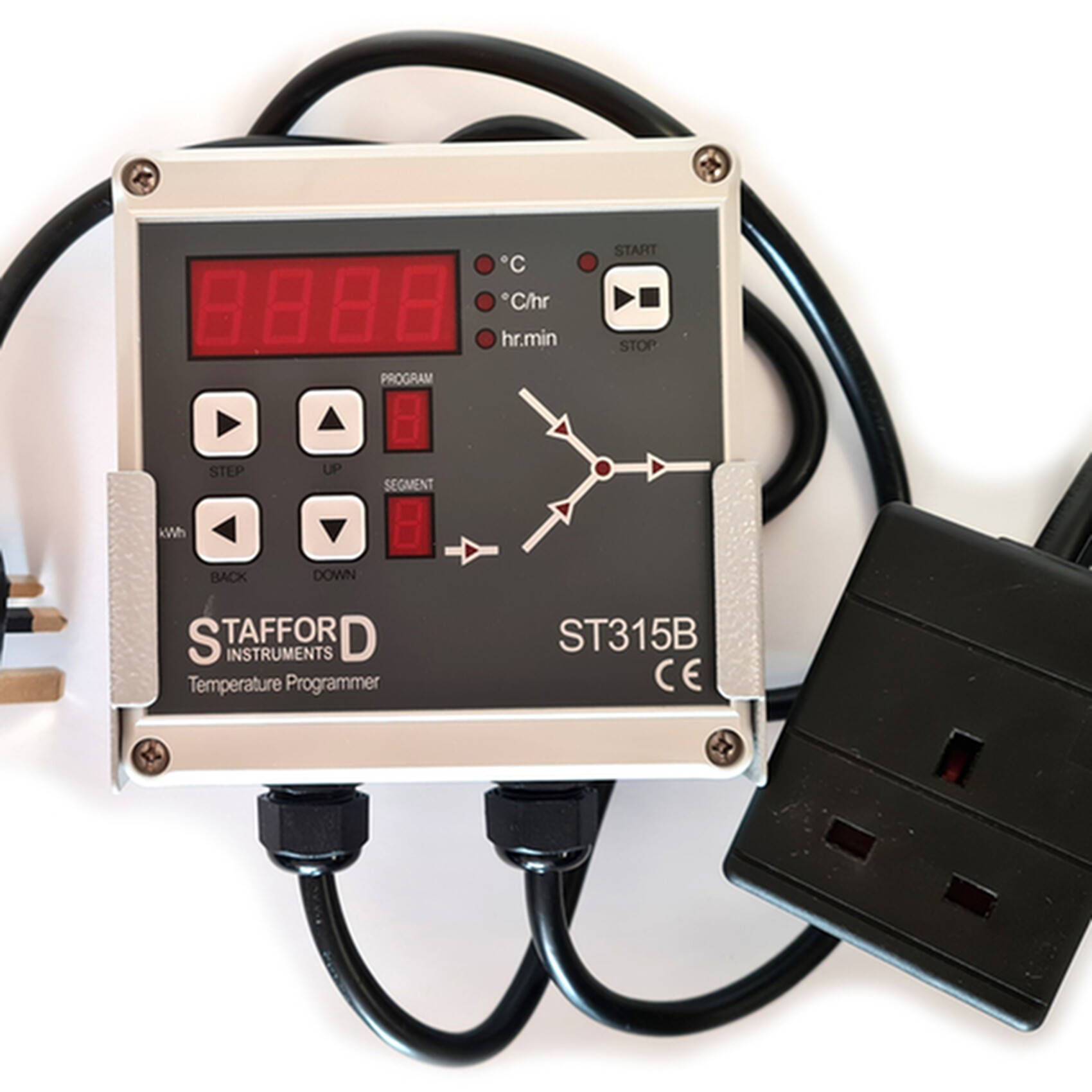

ST315CP with plug

This controller is designed to replace manual soak/cut-off and KilnSitter controls on 13amp plug-in kilns without any electrical work. Just plug your kiln into the controller and plug the controller into your three pin, 13amp socket, the ST315CP will then control the whole firing program without the need to keep turning up power. You can have up to 9 programs and each program has 9 segments so you can have programs that precisely fit your requirements. If you have a KilnSitter then you will need to put a much higher minbar in the kiln and set the Limit Timer to full; if you have a soak/cut-off device simply set the energy regulator and temperature to full and the controller will do the rest.

The ST315CP with plug 3kW KIT consists of a 120mm thermocouple, compensating cable with mini plug connector and the controller.

Features

• 9 Programs each with 9 segments
• 1 controlled heating / cooling ramp + 1 soak per segment
• Ideal for glass or ceramics use
• Soak times up to nearly 100 hours
• Ramp rates from 1 to 999°C/hour + full
• Programs can be reviewed or altered while firing
• Program Pause & Segment Advance facilities
• Keyboard lockable
• Delayed start facility - up to 4 days
• Power failure recovery
• Energy used display
• Standard alarm / safety relay with alarm buzzer
• On-board power relay able to cope with kilns up to 20A
