ST316C Stafford Instruments Controller

About

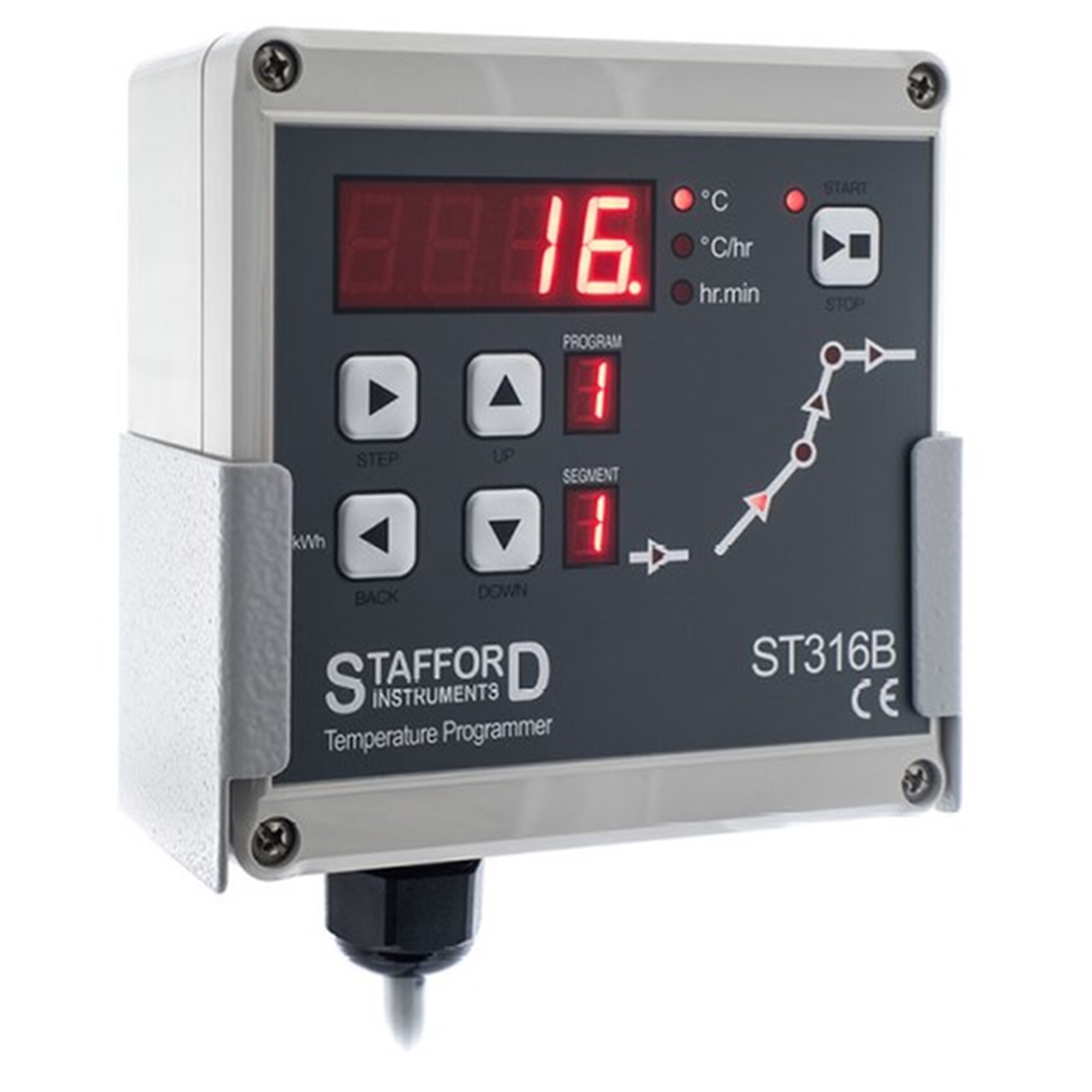

814-6074 - ST316B Stafford kiln temperature controller.

•The Stafford ST316B kiln temperature controller is highly specified and is ideal for both ceramics and glass applications.

The controller features:

• 9 programs— each containing up to 9 segments (2 controlled heating / cooling ramps + soak per segment).
• Soak / hold times up to nearly 100 hours
• Ramp rates from 1 to 999°C/hour + full
• Programs can be reviewed or altered during firing
• Program Pause & Segment Advance facilities
• Keyboard is lockable
• Delayed start facility - up to 4 days
• Power failure recovery
• Energy used display
• Standard alarm / safety relay with alarm buzzer
• Complete with wall mounting bracket / holster

The ST316B is a 9-program controller designed for pottery, ceramics & glass firing. Each program can have from 1 to 9 segments. It is fully adjustable with a detailed 6-lamp mimic display & continuous display of program & segment numbers. Each segment comprises 2 ramps followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to temperature t1 then it executes another controlled ramp to temperature t2. It soaks at t2 for the required period then executes the next segment. The end of the program is marked by selecting ‘End while entering a ramp rate. Natural cooling then follows.

Image for illustration purposes only
