L&L Plug'n'Fire kiln

About

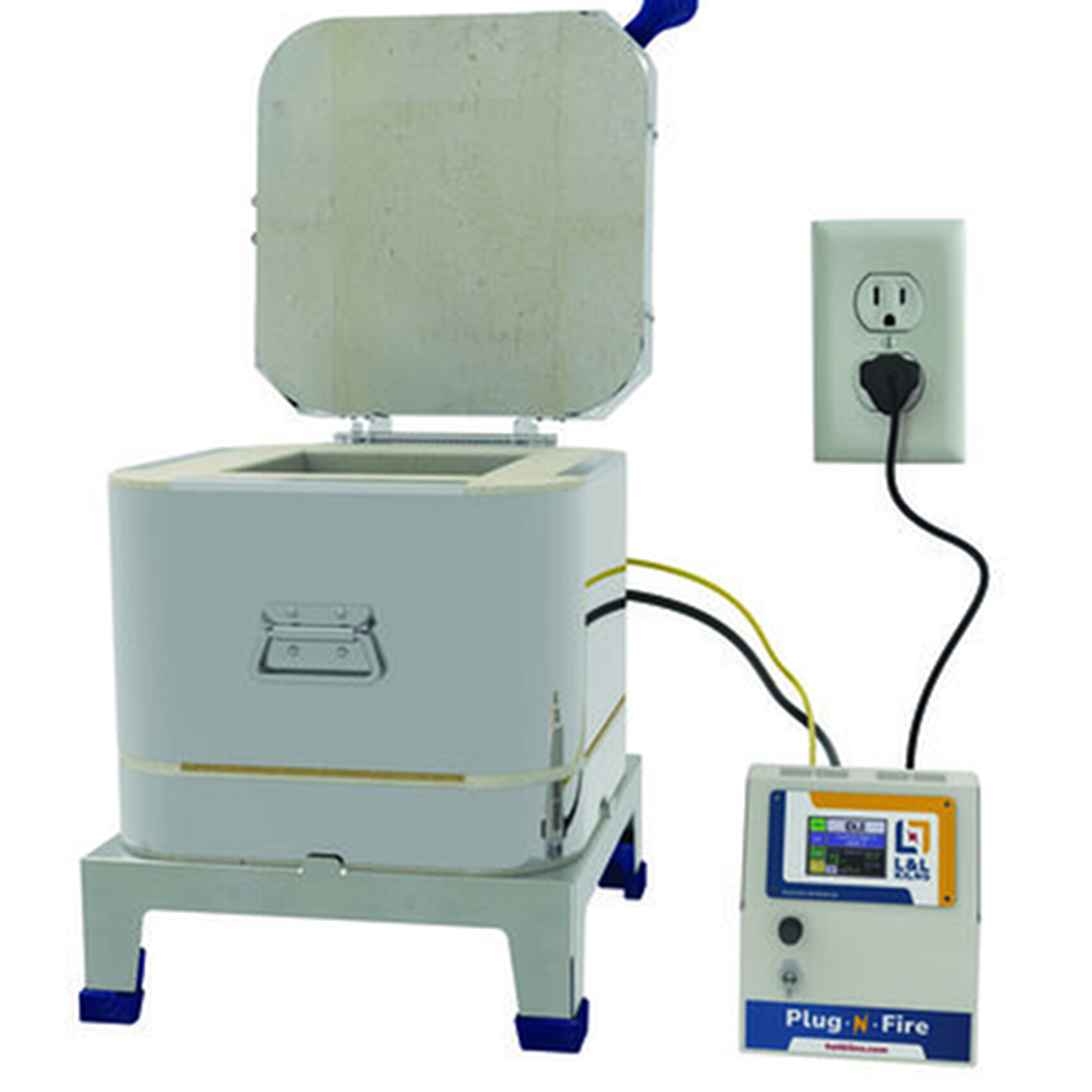

Model PF8 Craft/Test Kiln with a Genesis Mini Touchscreen Controller

• 8" Square x 9" High (0.33 cu ft)
• This kiln can fire to Cone 10 on most standard 15-amp circuits, and draws only 12.5 amps
• Extra-insulated sides with 2-1/2" K23 brick and 1" of backup insulation; Top & Bottom are 3" K23 brick
• Kiln plugs into a separate control panel with power and thermocouple wire jack
• Door safety switch shuts off power to the elements when the door is opened
• Hard ceramic element channels
• Includes one 7" by 7" by 3/8" shelf and three 3" posts
• C-ETL-us Listed to UL499 and Canadian Standards
• On-Line Instructions
• Includes Genesis-Mini Touchscreen Control

Insulation: 2-1/2" K23 Firebrick & 1" 1900 Back-Up Insulation on sides, 3" K23 Firebrick on top & bottom

Sections: One section Inside Dimensions: 8.00" Wide x 8.00" Deep x 9.00" High (20.32 cm Wide x 20.32 cm Deep x 22.86 cm High)

Outside Dimensions: 16.00" Wide x 19.00" Deep x 20.00" High (40.64 cm Wide x 48.26 cm Deep x 50.8 cm High)

Weight: 77 lbs (35 kg)
