Economy Pugmill 3" with Safety Grid

About

NB: This item is not kept in stock at Potclays and will be ordered in for you. Lead time from date of order is usually 15-20 working days, but if the manufacturer has the item in stock, the lead time could be as little as 3-4 working days.

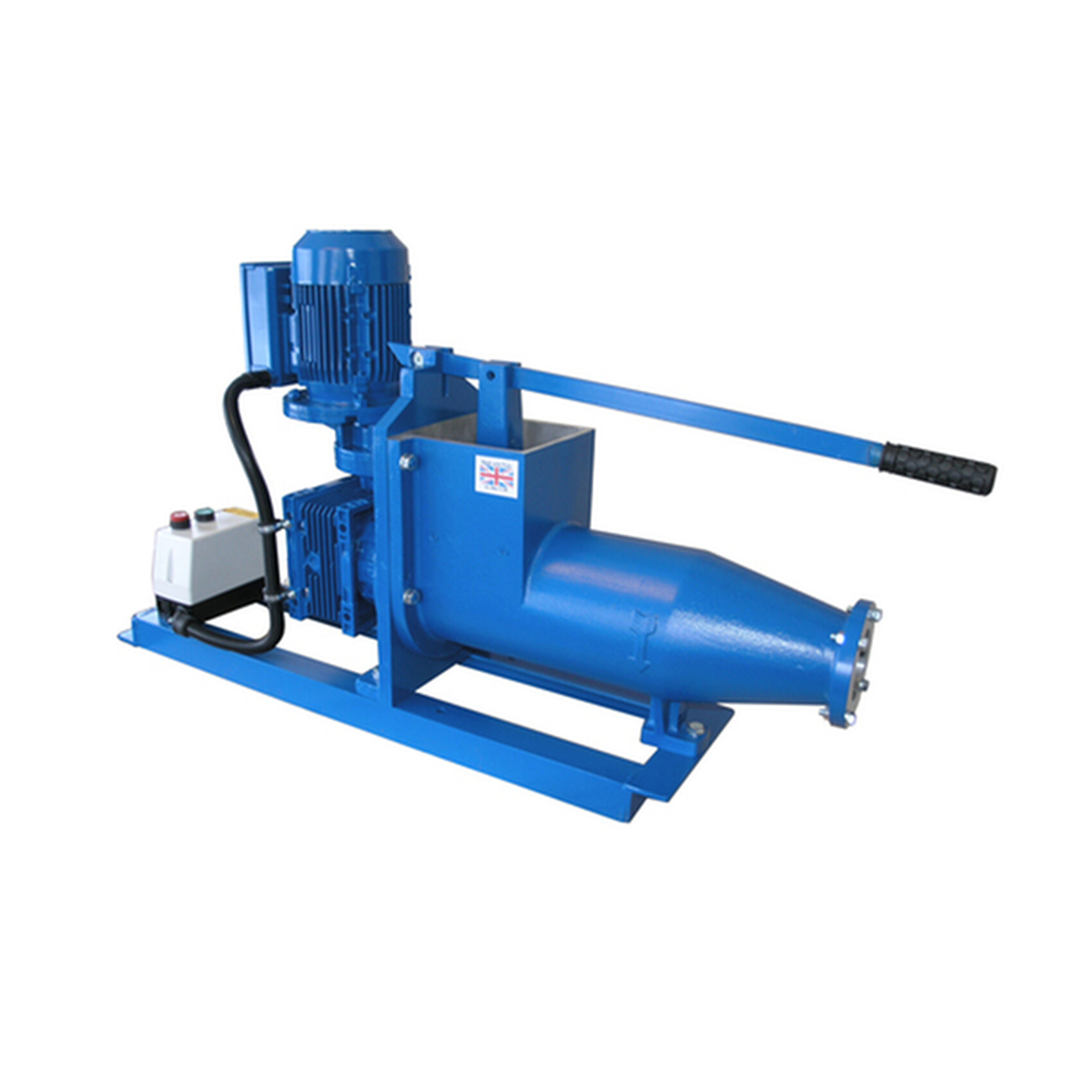

The 7039-03 is the same compact design as the 7039 but has a larger 150 mm barrel with a 75mm outlet. The 7039-03 has a greater output and due to its larger hopper is easier to use than its smaller cousin. This pug mill is supplied with a thermal overload switch and safety grid as standard. The 7039-03 has a 6" (150 mm) aluminium body, 3" (75mm) extrusion and a split body to facilitate easy cleaning, Individual aluminium blades mounted on a hexagonal steel shaft means that the blades can be altered for different configurations, allowing for better mixing or extrusion.

• Delivery Weight: 78kg
• Drive motor: 0.75Kw (1 Hp) reduction drive gearbox 230v
• Output: Approximately 300Kg per hour
• Dimensions: 800mm long x 280mm wide x 500mm high
• Finish: Durable powder-coated finish



  Pugmills are an important item of equipment in any pottery or studio.  Provided that the clay is not too dry, putting it through a pugmill will reconstitute it.  Thus the clay can be reclaimed and used again.  The pugmill can also be used within reasonable limits for incorporating such materials as sand or grog etc into the clay body.  If the pugmill is used fairly frequently and the hopper and outlet nose cone sealed, when not in use, no appreciable drying of the clay will occur and it will not be necessary to clean the pugmill.  However, if the pugmill is used infrequently it should be cleaned after use. Under no circumstances should the pugmill be used with dry clay still in its body.

We have to calculate the carriage charge for this item per order. We'll not be able to add the carriage charge to your order but will call you for it before we ship. Alternatively, please call us for a quote on +44 (0)1782 219 816 or email sales@potclays.co.uk
