De-Airing Pugmill with a 100mm outlet
7038-03
Pre-Order. Dispatched as soon as available.
-
Ships Worldwide
Delivery Available
-
Returns Accepted
Returns Accepted
About
AVAILABLE TO SPECIAL ORDER - PLEASE CONTACT US.

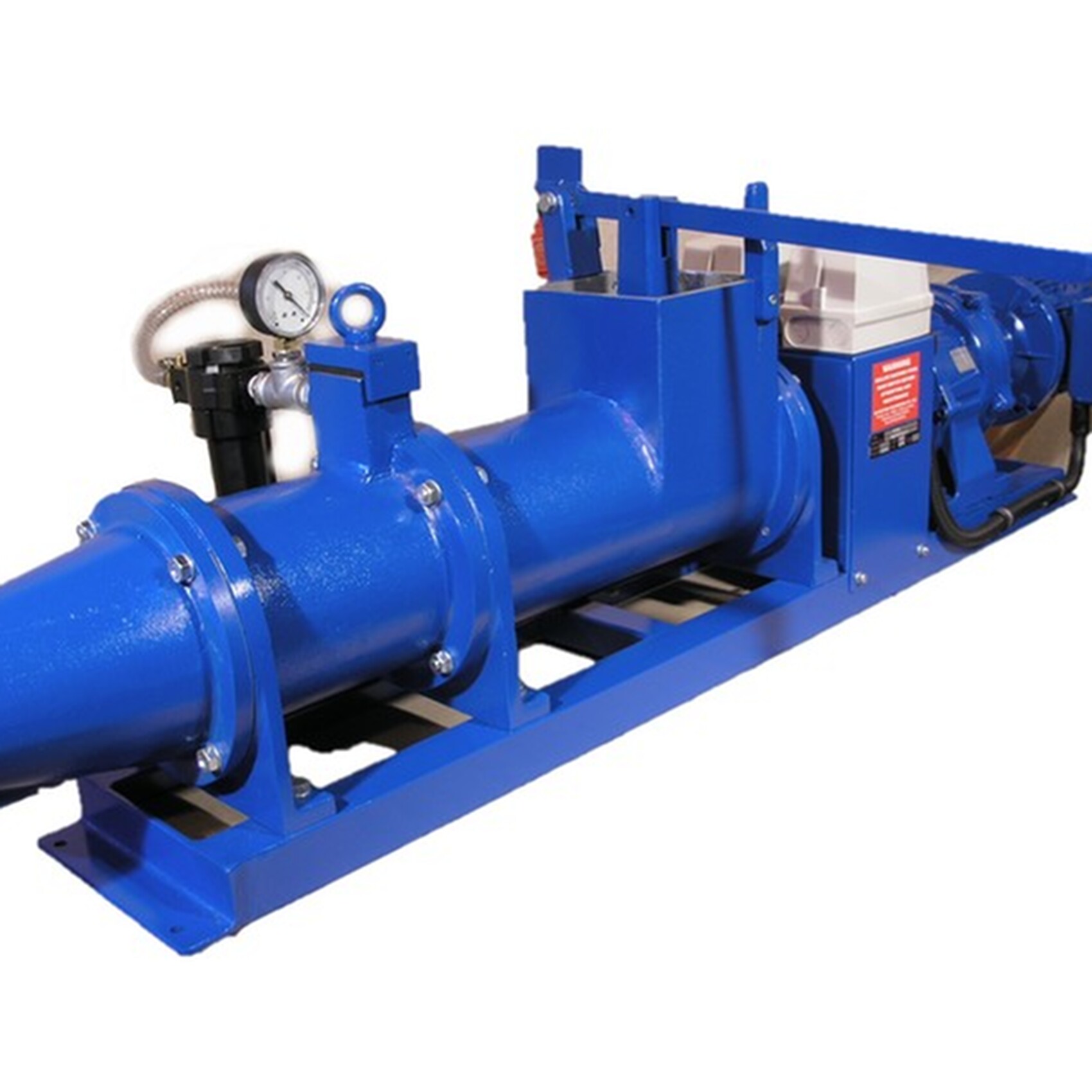

ThisĀ De-Airing Pugmill is the largest outlet machine at 100 mm, capable of producing up to 500 kilos per hour of clay, and it is also extremely robust in construction.Ā ItĀ uses heavy section cast Alloy barrels with anti barrelling strips, and the auger consists of individual Alloy blades mounted on a hexagonal shaft. These can be altered in configuration depending on the required performance.
This De-Airing Pugmill is supplied complete with all the required switch gear and a interlocked hopper safety switch.
Specifications |
|
| Delivery Weight: | 180kg |
| Vacuum pump: | High volume oil immersed |
| Drive Motor: | 2.2Kw (3 Hp) reduction drive gearbox direct drive 230 single phase / 400v three phase |
| Output : | Approximately 500 Kg per hour |
| Dimensions: | 1800mm long x 320mm wide x 670mm high |
| Construction: | Cast Aluminium 200mm barrel with 100mm extrusion , Split body to facilitate easy cleaning |
| Finish: | Durable powder coated finish |
Lead timeĀ 4-6 weeks from order.
