De-Airing Pugmill with a 75mm outlet
7038-02
Pre-Order. Dispatched as soon as available.
-
Ships Worldwide
Delivery Available
-
Returns Accepted
Returns Accepted
About
AVAILABLE TO SPECIAL ORDER - PLEASE CONTACT US.

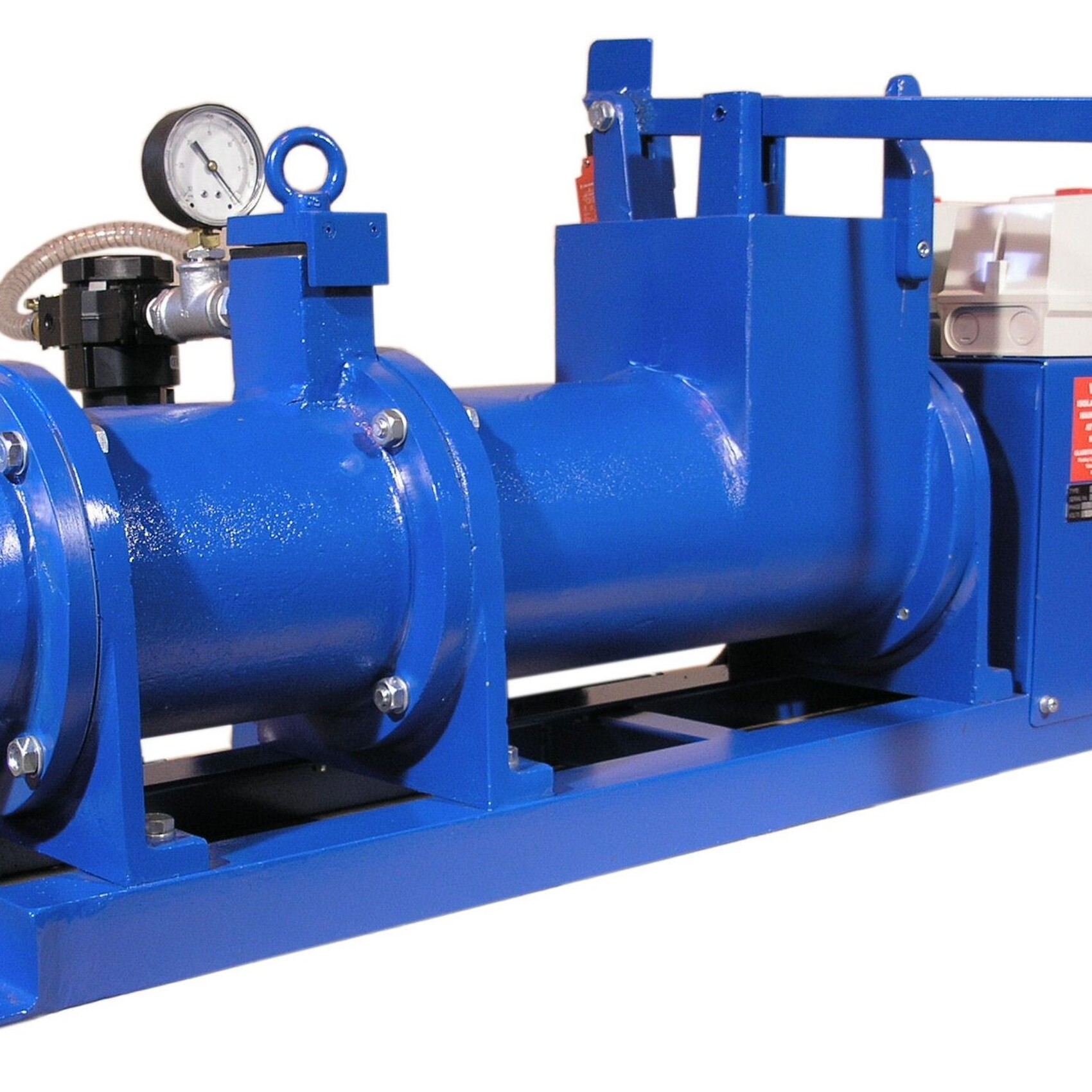

AÂ 75 mm out let de-airing pugmill this machine can be offered in range of specifications and is ideal for the small studio or educational use.
The standard machine incorporates aluminium barrels and nose cone with aluminium blades and uses the same design drive system as the 70mm model. However, this model offers a greater capacity both in output of clay and also an increase in size of extrusions. It can also be fitted with die plates and tile nose cone.
Specifications |
|
| Delivery Weight: | 145kg |
| Vacuum pump: | High volume oil immersed |
| Drive Motor: | 1.1Kw (1.5Hp) reduction drive gearbox direct drive 230/ 400v |
| Output: | Approximately 320 Kg per hour |
| Dimensions: | 1600mm long x 500mm wide x 470mm high |
| Construction: | Cast Aluminium 150mm barrel with 75mm extrusion , Split body to facilitate easy cleaning |
| Finish: | Durable powder coated finish |
Lead time 4-6 weeks from order.
