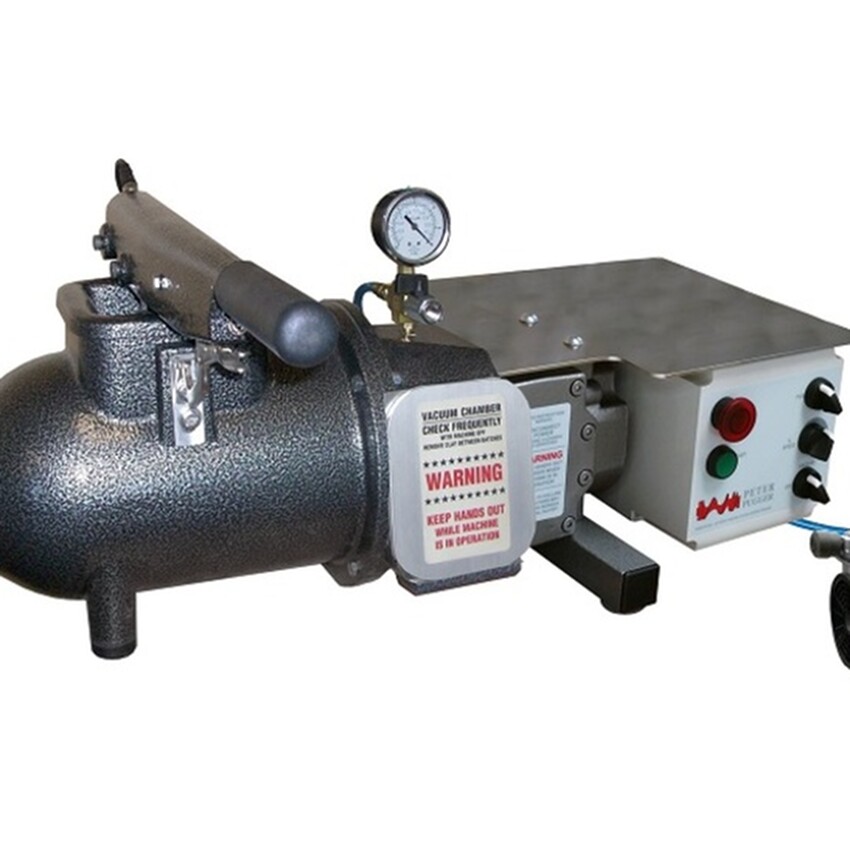

Peter Pugger VPM-7SS Vacuum Deairing Power Wedger Pugmill (Stainless)

About

***New to Potclays in 2023***

We're delighted to introduce Peter Pugger machines to our portfolio due to popular demand. We have regular containers from the USA so if a particular machine is out of stock, please pre-order it and we'll confirm availability.

VPM-7SS Vacuum Power Wedger
(14 lb. Max. Batch Size)
"The Vacuum Deairing Pugger-Mixer"

This model is 220V operation. Supplied ready to wire in, but can be fitted with standard 3 pin plug.

Question: "When is Peter Pugger going to come up with something small for us single potter studios?"
Answer: The VPM-7SS has arrived. With all the bells and whistles, and a price that competes with the standard "offshore" pugmills, the compact VPM-7SS does it all. Any clay that has not been fired can be reclaimed in the VPM-7. With the fastest mixing times in the industry, broken green ware, slop, powder and water can be thrown into the pugmill and reclaimed in minutes. With the latest advancements in mixing, deairing and extruding technology, the VPM-7 outshines the competition. Quality, durability and proven performance…Why settle for anything else?

Specifications

• Maximum Batch Capacity*: 14 pounds
• Pugging Rate: 350 lbs. per hour
• Mixing Rate: 100 lbs. per hour
• Dimensions: 33.5"L x 12"W x 13.75"H
• Crated Weight: Stainless Steel Version – 149 lbs. (Ships Fed Ex Ground)
• Hopper Door Size: 4.5" x 4/5"
• Pug Size: 3" round
• Electrical: 1/2 HP 1-phase, 6 amps at 120 volts, 4 amps at 240V
• Vacuum Pump: 1/3 HP, (Included; operates off main electrical)

*Max Batch Capacity may vary depending on material density and moisture content
