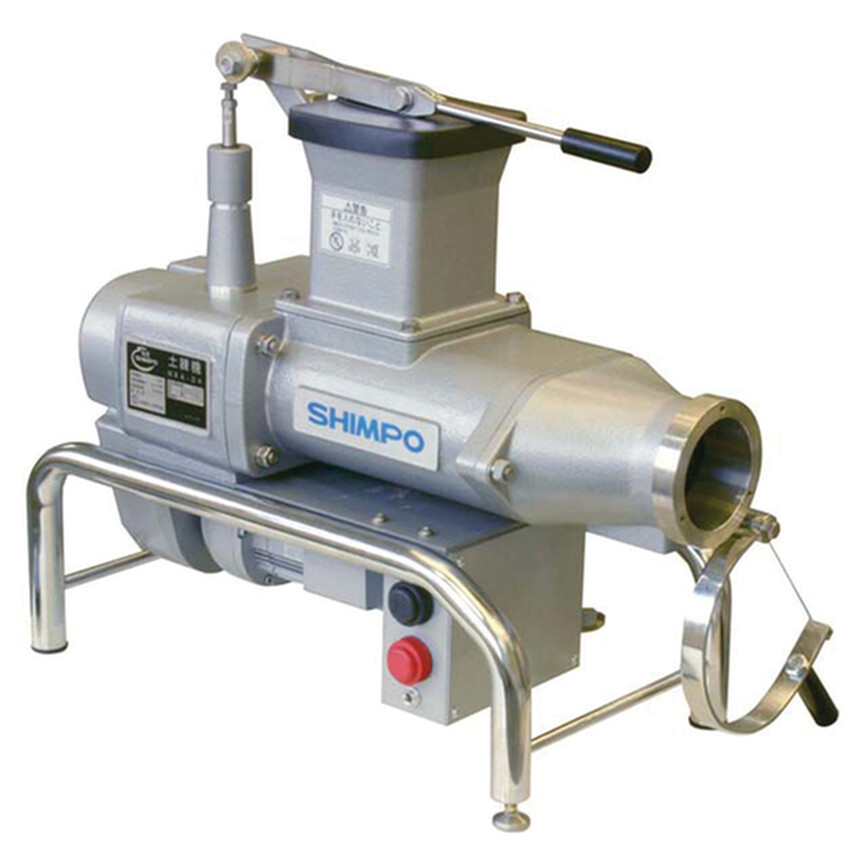

Shimpo NRA-04S Pugmill

About

If this item is out of stock, please contact our sales team on 01782 219816 for an up-to-date price and order lead time estimate.

The NRA-04S Pugmill from Shimpo features a high quality twin screw design using stainless steel construction for both the main body and screws. The Shimpo NRA-04S pugmills feature newly designed twin augers and a forceful direct gear driven motor for remarkable extruding capability that produces virtually air-free clay and increases clay workability. It features an all-stainless interior for use with porcelain and other light coloured clay bodies. The high quality wedging and extruding capacity obtained makes this compact pugmill one of the most efficient and competitive on the market.

This premium pugmill offers:

• Compact easy clean design - Removable stainless steel case allows for easy access to mixing chamber for fast and easy clean-up and maintenance.

• Dual safety system - Safety limit switch automatically cuts power to pugmill when augers are exposed. Stop button allows for immediate operator control.

• Superior wedging function - Newly designed cast stainless steel twin augers, typically found only in large industrial machines, increases wedging capacity and produces virtually air-free clay

• Forceful direct gear driven motor - Provides maximum mechanical force for blending requiring minimum operator effort.

• High extruding capacity - Twin stainless steel mixing augers blend and extrude up to 400kg(880 lbs) per hour.

• Nozzle Diameter - 3.5" (90mm)

• Cut off wire & clay receiving table with rollers - Accessories included to allow for easy bagging of extruded clay.

Motor: The Shimpo NRA-04S pugmill features a sturdy 0.25HP (200W) single phase 230V motor.

Dimensions:

• 665mm (w) (1025mm including clay roller stand) x 335mm (d) x 560mm (h)
• 26" (w) (40" including clay roller stand) x 13" (d) x 22" (h)

Weight: Main pugmill body - 75kg, Clay roller - 5kg

Potclays are the ONLY OFFICIAL, AUTHORISED UK & EIRE DISTRIBUTOR for Shimpo wheels and pugmills and we can confidently offer you peace of mind that should something go wrong, we will do our utmost to resolve the problem and have the full support of Shimpo Japan in doing so.

As we are the only official, authorised distributors for the UK and Eire, our Shimpo products are supplied direct from Shimpo's manufacturing facility on an authorised basis and are manufactured specifically for the UK market, therefore they have the correct electrical ratings, plugs, etc. and thus comply fully with UK regulations.

We offer a full and comprehensive technical/after sales/warranty support: Our technical advisor is only a phone call away. You're never far from help when you buy from Potclays.

We have regular shipments from Shimpo Japan, so in the unlikely event that something should go wrong with your wheel during its lifetime period, if necessary we can obtain spare parts quickly. All you need do is supply the model number and UK serial number and we can do the rest.
