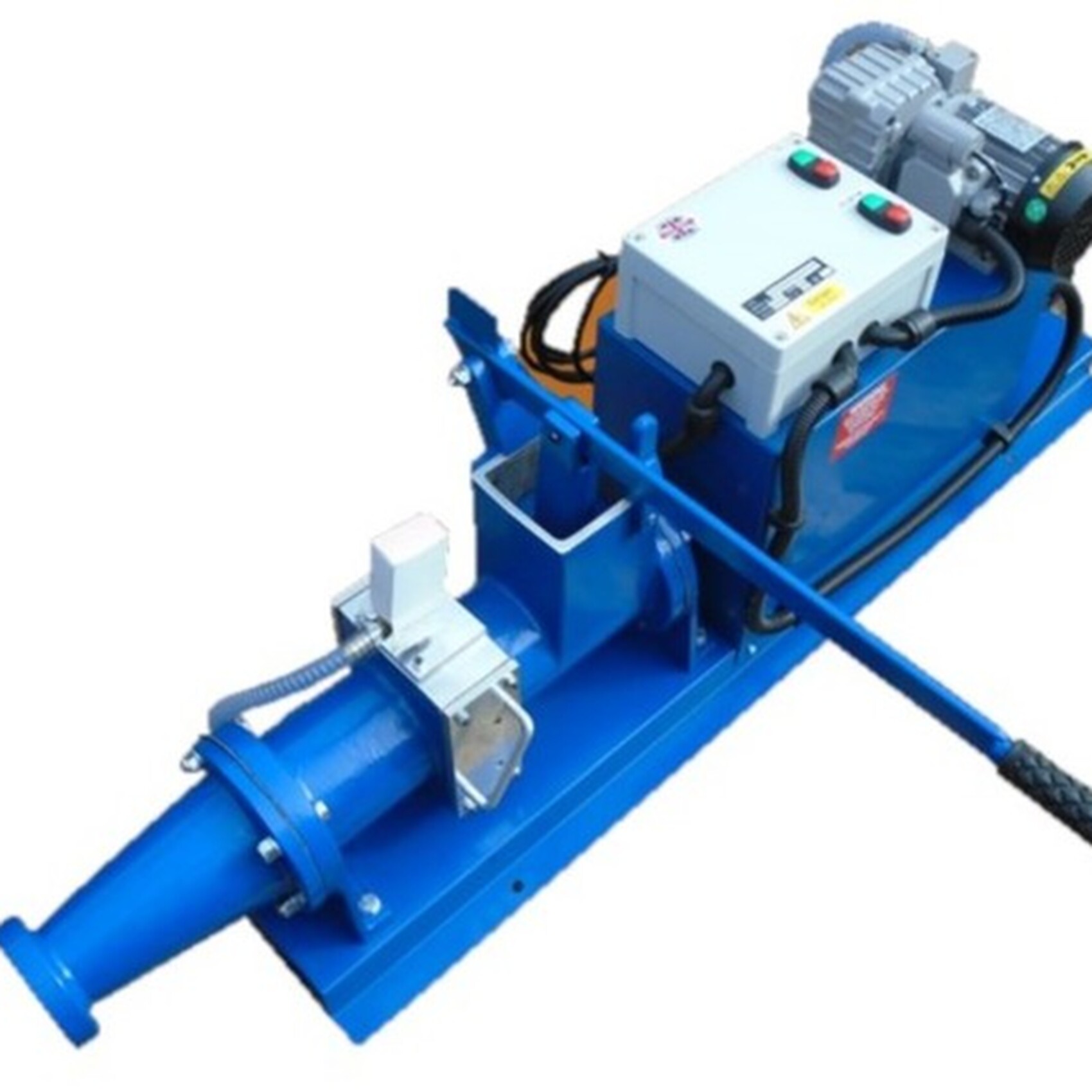

Studio De-Airing Pugmill with a 70mm outlet
-
Ships Worldwide
Delivery Available
-
Returns Accepted
Returns Accepted
About
AVAILABLE TO SPECIAL ORDER - PLEASE CONTACT US.
AÂ 70 mm out let de-airing pugmill. This machine can be offered in range of specifications and is ideal for the small studio or educational use as it only takes 7Kgs of clay to fill the machine up.
The standard machine incorporates Aluminium barrels and nose cone with Nylatron blades. The auger is powered by an in line helical drive motor and gearbox. The pugmill is supplied complete with a high volume vacuum pump.
The Studio De-Airing Pugmill has externally removable shredder plates for easy cleaning, making it one of the most user friendly machines available. The pugmill can be supplied with various options including die plates for coil extrusion and tile nose cone and dies for extruding tiles.
Specifications |
|
| Delivery Weight: | 65kg |
| Vacuum pump: | High volume oil immersed |
| Drive Motor: | 0.37Kw (0.5 Hp) reduction drive gearbox direct drive 230/ 400v |
| Output: | Approximately 220 Kg per hour |
| Dimensions: | 1260mm long x 310mm wide x 470mm high |
| Construction: | Cast Aluminium 100mm barrel with 50mm extrusion , Split body to facilitate easy cleaning |
| Finish: | Durable powder coated finish |
Lead time 4-6 weeks from order.
