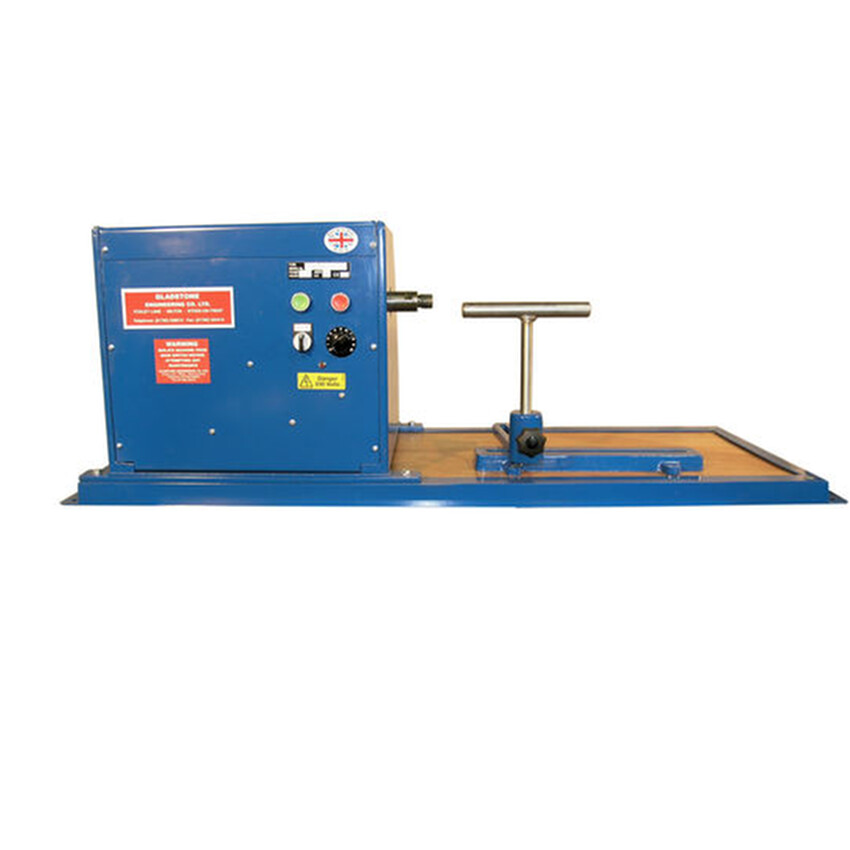

Reversible Lathe

About

AVAILABLE TO SPECIAL ORDER - PLEASE CONTACT US.

This potters lathe is another addition to our range of proffessional equipment, it is built to give a long trouble free life with little maintenance required.

The machine construction consists of 1/4" steel base, at each end there are two aluminimum plates in which the bearings are mounted. The shaft is 1 3/8" diameter with a 1" Whitworth thread. The motor is a 1/2Hp AC which transfers its drive to the shaft via a V belt and pulley. The speed is controlled by a AC electronic speed controller which has a reversing facility on it and the speed is varied by a hand operated knob, a foot operation is avaiable as optional extra.

The machine is totally enclosed for protection and comes complete with adjustable tool rest and its own base to which the tool rest is fixed.

Overall size Height 410mm, Width 470mm, length 1220mm
Motor 1.2Hp AC
Speed control Varibale electronic
Speed range 0-380rpm
Bearing Sealed for life, self aligining
Optional Extras Foot operated controller
Tapered steel spindles 150mm, 230mm, 30mm, and 380mm long Aluminimum face plates 150mm, 200mm and 250mm diameter
Aluminimum cup heads to order

We have to calculate the carriage charge for this item per order. We'll not be able to add the carriage charge to your order but will call you for it before we ship. Alternatively, please call us for a quote on +44 (0)1782 219 816 or email sales@potclays.co.uk
