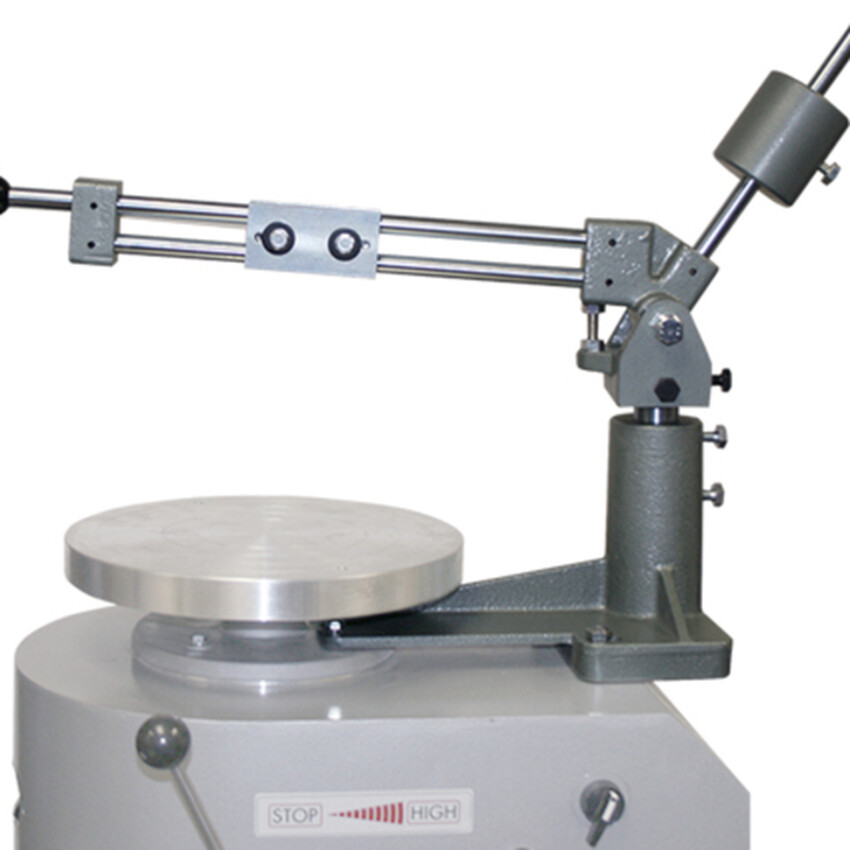

Shimpo Jigger Arm Attachment

About

The Jigger Arm Attachment is made of heavy-duty cast iron, this Adjustable arm assists you in producing jiggered pieces up to 177 mm – 12.7 mm high and 279 mm in diameter and attaches to most NIDEC-SHIMPO wheels.

Features

• Adjustable arm assists you in producing jiggered pieces up to 190.5 mm high and 279 mm in diameter
• Heavy-duty cast iron construction
• The Jigger Arm Attachment is designed for the Shimpo RK-3D which has a 304.8 mm (12 inch) wheelhead.
• The Jigger Arm Attachment can also be fitted to the Shimpo Whisper RK-3E provided the 14" wheelhead is replaced with a 12".
• The Jigger Arm Attachment does not fit the Shimpo Whisper T.
• The Jigger Arm Attachment has not been fit-tested with any other brands/models of potter's wheel.

Rack Attachment Fit: Adjustable arm assists you in producing jiggered pieces up to 177 mm – 12.7 mm high and 279.4 mm in diameter

TIP: Some potters prefer to make their own profile formers, or you could approach a plaster mouldmaker. We believe that the standard head can be used but it may be necessary to pin the head dependent on the fixing of the formers etc.

Weight: 21.77 kg
