KG 250A
-
Ships Worldwide
Delivery Available
-
Returns Accepted
Returns Accepted
About
There is currently a 12 week lead time on all Rohde kilns.
Â

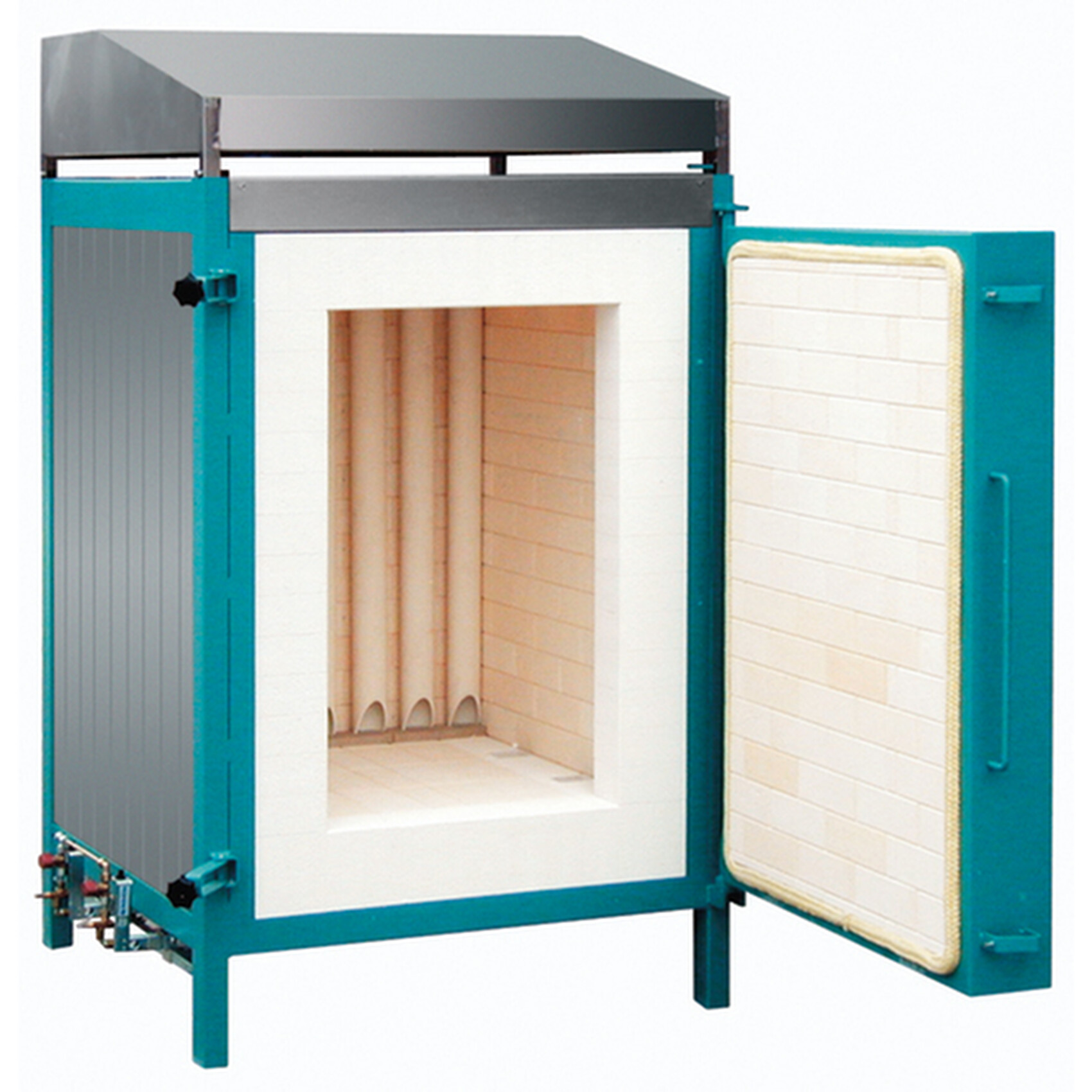

Rohde Gas-fired kilns up to 1320°C
All our gas-fired kilns are outstanding in their easy and safe gas heating technology, which is of course, always up-to-date with the latest developments.
Downdraft technology provides for even temperature distribution. The extremely silent high-performance intermediate pressure burne, especially developed for these kiln types, ensure an optimal increase in temperatures even in the high temperature range and allow a stable atmospheric control (no pressure drop during firing). The efficient technology results in very low energy consumption. Reduction control is carried out manually by means of a flue slide. All models are equipped with spy holes to monitor the firing process with Seger cones.
The gas fittings including safety technology are entirely preinstalled for connection to gas bottles or gas lines according to DVGW (German technical and scientific association for gas and water). A thermocouple with temperature meter is of course part of your ROHDE gas-fired kiln. Our Servo Jet burner was especially designed for the firing with natural gas.
Advantages of ROHDE gas-fired kilns:
- Reduction resistant firebrick lining
- Lightweight insulating firebricks, no fibre mats: harmless and durable
- Low outside temperatures
- Test certificate for quality control
- CE certificate of conformity
- Maintenance free
- 36 months guarantee
Â
Special features of the KG series (included):
- Downdraft flame control technology
- Stainless steel in-frame ventilation resulting in low external temperatures and corrosion protection
- Stainless steel hood
- Flame baffle plate to protect the kiln construction in the burner area
- Exhaust air handle setting using a guiding scale
-
Special equipment (at extra cost):
- Oxygen probe for atmospheric measurement
- CO alarm and monitoring device
- ROHDE Servo Jet equipment for working with natural gas
- Castors, stable and robust
Â
If you require special delivery arrangements please contact us.
|
IMPORTANT NOTICE REGARDING ROHDE DELIVERIES All deliveries MUST be checked before signing. A ‘clear’ signature indicates acceptance of the delivery in good condition. If any issues are subsequently discovered, Rohde/Potclays will not be held responsible. The following procedure must be adhered to: 1. Check the goods by opening the box and examining it for damage; if damaged, sign – damaged 2. If the shock-watch is red, sign as shock-watch activated regardless of what the subsequent checking reveals 3. If there is a small empty box on top of the consignment (usual on top loaders) and it is flattened make a note, box damaged. 4. If it is not possible to open the kiln box (in the presence of the delivery driver) to check the goods, sign as unchecked. Just because the box looks OK, the goods may not be OK. 5. Essentially unless you are really sure (by checking) that the goods are undamaged there should be a note on the receiving papers, either unchecked, shock-watch activated or box damaged. |
