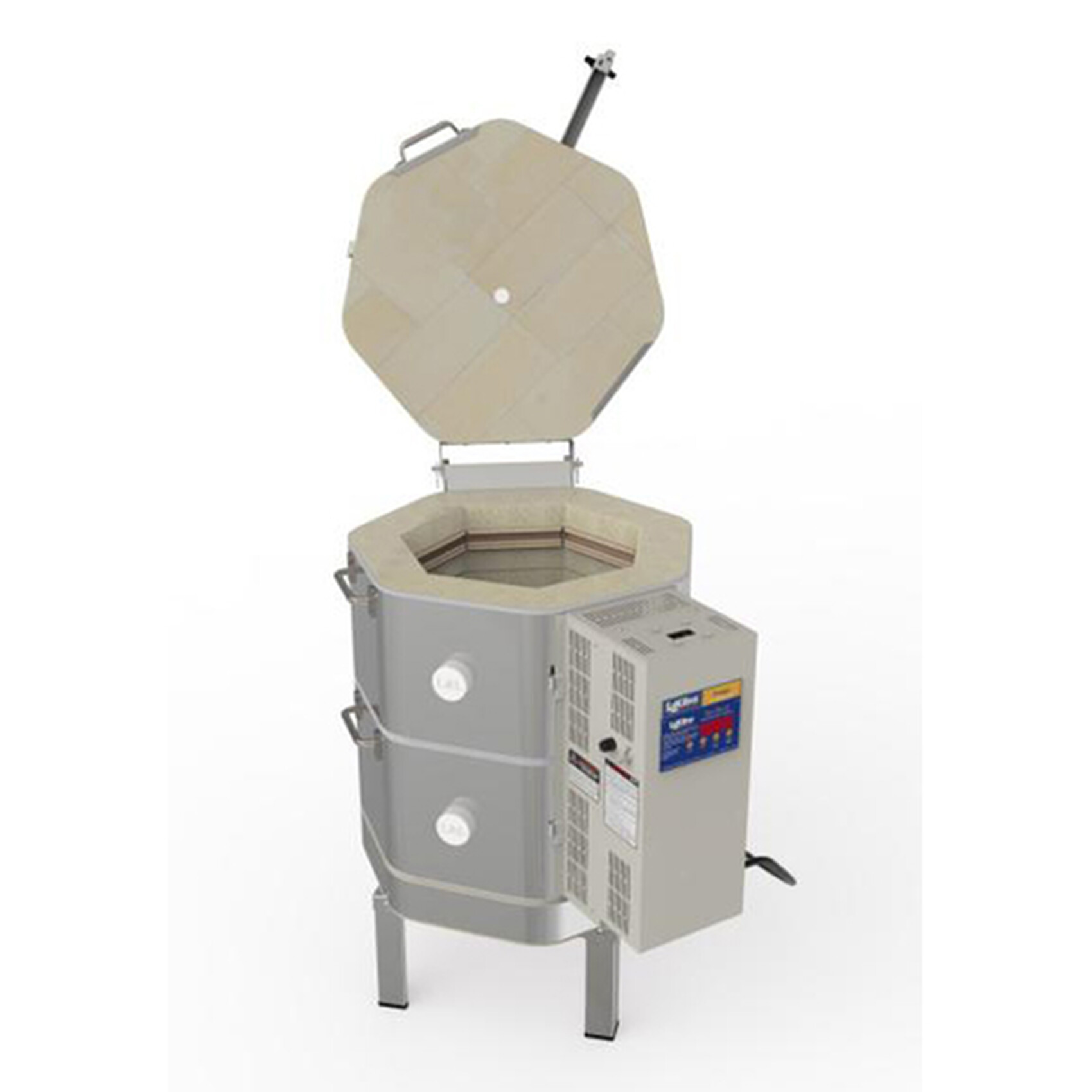

L&L Fuego 40lt Plug+Go Toploading Pottery Kiln (New Design 2021)

About

L&L FUEGO Plug-in Toploading Kiln - NEW DESIGN 2021 (supercedes sku 800-8010).

See Downloads tab for document. Manual available at https://www.potclays.co.uk/landl-resources.

Reaches Cone 10 operation on standard international household voltage of 220 to 240 volts. Amp rating: 13 amps for UK systems.

The FUEGO has the full range of premium L&L features such as hard ceramic element holders, protected thermocouple, full support 14 gauge aluminized steel stand, two solid peephole plugs with full 1” view, proprietary reflective brick coating that protects brick and minimizes dusting, and three-year limited warranty. Brick thickness is 3” and also includes a layer of non-RCF fiber between the stainless steel case and firebrick for extra insulation, a door shut-off switch for the elements, and an extra peephole plug in the top for venting.

• Fuego "Plug and Go" 13 Amp kiln
• Fitted with a 2 metre electrical cable with UK three-pin plug
• 230volt 1phase 13amp plug and go kiln
• Internal dimensions 35.5cm (14") dia x 45.7cm (18")high
• External dimensions 56cm (22") wide X 71.7cm (28.2") deep x 74cm (29") high.  142cm (56") high with lid open
• 40litres 1.4cf
• 3.0kW 13.1amps
• 1290°C
• Shipping weight 69Kg

Potclays are the exclusive importers to the British Isles for L&L Kilns who are one of the leading builders of craft and industrial kilns in the USA. The scale of their top loader operation enables high quality kilns at competitive prices. The hardened clay element holders are a major feature of all the L&L kilns we sell. They protect delicate brickwork and improve heat transmission. Patented by L&L, they are exclusive to L&L. Other features of all L&L kilns are:- Designed for easy maintenance; high specification controllers; reversible base to extend life if damaged by glaze.

Photographs are for illustrative purposes only

This product does not include the Fuego furniture set (order separately)

Features

Performance

Thermal Ceramics Firebrick: K23 firebrick combines good insulation with strength.

Durability

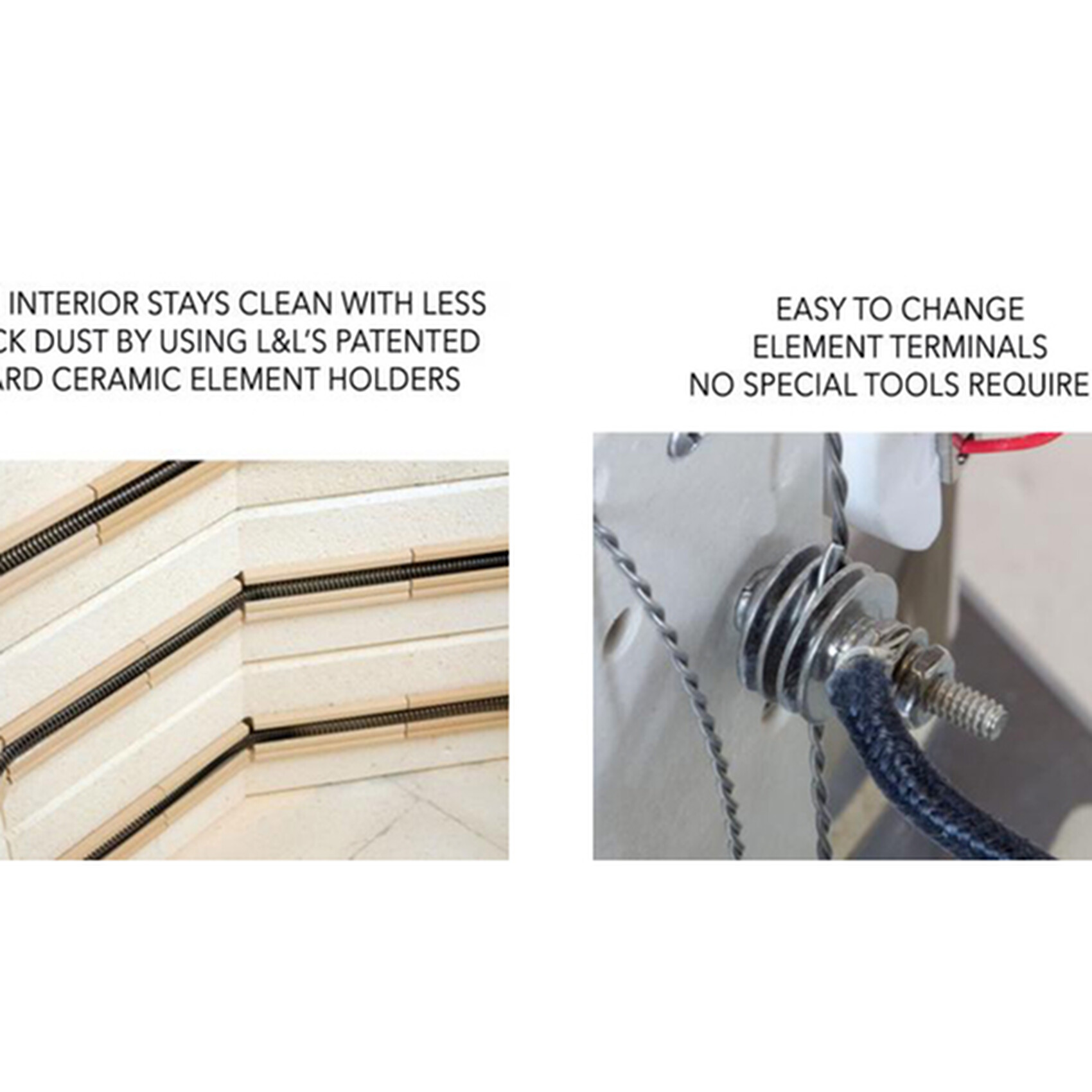

Hard Ceramic Element Holders Make L&L Kilns More Durable: Durability, Repairability, Better Heat Transfer

Thermocouple Protection Tubes: Mullite protection tubes extend thermocouple life and keep kiln clean

Solid Super-Strong Aluminized Steel Stand: Aluminized stands are extremely strong and corrosion resistant.

Thick 8 Gauge Thermocouples: Thick 8 gauge thermocouples last a long time.

Proprietary Reflective Coating Hardens & Seals Brick: Special brick coating hardens and seals brick for durability and cleaner operation.

Stainless Clips Secure Lids to Bands: Stainless Steel clips help the lid stay secure and durable.

Corrosion Resistant Case: Corrosion resistant materials and methods result in a long-lasting kiln.

Redundant Case Clamps: Three case clamps are redundant safety for your L&L kiln.

Ease of Use

One-Touch™ Intuitive Kiln Control (School-Master, Liberty-Belle, Doll): Four-Key Control that Redefines Simplicity. Perfect for Schools & Hobbyists.

Solid Wide-View Peephole Plugs: Solid large non-tapered peepholes allow a wider view into the kiln.

Simple Strong Hinge with Wide-Angle Opening: This is used on top-loading kilns that are 8 sided or less

Support

Superior Technical Support: The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.

Standard Three-Year Limited Warranty: Most L&L Kilns have a three-year limited warranty.

Serviceability

Molded Ceramic Industrial-Grade Element Connection Blocks: Industrial grade ceramic terminal blocks make changing elements easy.

Sectional Kiln Construction for Liberty-Belle and Similar Kilns: Sectional kiln construction makes kilns easy to move, set up and disassemble for maintenance.

Reversible Bottoms: The bottom can be easily reversed in case of a firing mishap.

Safety

On-Off Switch and Panel Fuse: All L&L Kilns come with an on-off switch

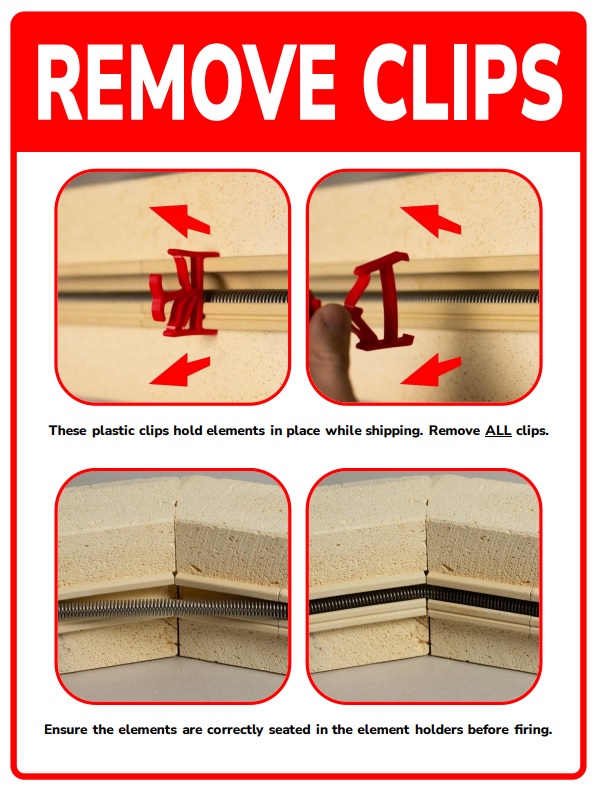

We install red, plastic clips over our L&L element holders to prevent elements from jumping out during shipping. Please follow the instructions to remove them before firing.

Image for illustration purposes only
