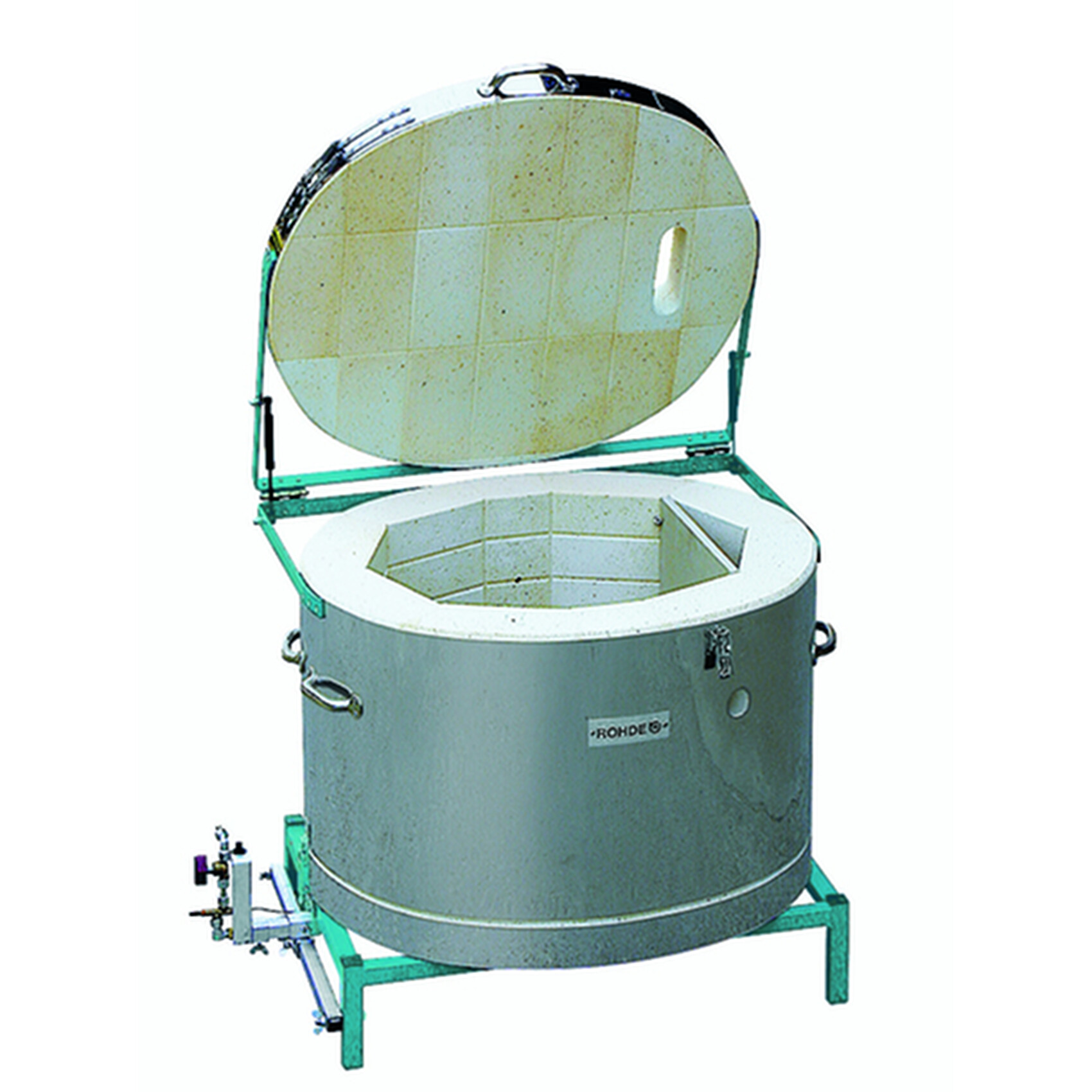

TG 170

Rohde gas-fired kilns up to 1320°C

NOTE:  Standard mainland England/Wales/Scotland kerbside delivery included in all quoted prices. If you require special delivery arrangements please contact us.

All gas fired Rohde top loaders from the TG series combine high level technology with economic efficiency. Rohde gas technology is easy and safe to handle. It can be controlled individually and has a very low energy consumption providing at the same time the best possible results.

Downdraft flame control technology ensures even temperature distribution. The extremely silent high performance intermediate pressure burners were developed specially for gas fired Rohde toploaders. They ensure an optimal temperature rise even in the high-temperature range and allow stable atmospheric control during firing. Reduction control is carried out manually using a flue slide.

All models from the TG series are equipped with spy holes to allow monitoring of the firing process using pyrometric cones. The gas fittings including safety technology are pre-installed for connection to gas bottles or gas lines. An 'S' type thermocouple with pyrometer is also supplied with the kiln.

Special features for the TG series

• Downdraft flame control technology
• Ring system can be disassembled for transport and movement
• Pressure spring supported opening mechanism for lid
• Burner systems for propane, butane and natural gas (at extra cost for natural gas)

Optional extras

• Furniture set [order using code 800-9403, 9413, 9423 or 9433]
• Oxygen probe for atmospheric measurement NL200 or 300 [order using code 800-9014 or 800-9015]
• CO alarm and monitoring device
• Rohde Servo-Jet equipment for working with natural gas [order using code 800-9021 or 800-9022]
• Automatic gas firing controller (only available for propane) [order using code 800-9020]
• Stainless steel hood [order using code 800-9401, 9411, 9421 or 9431]
• Castors
