L&L Plug'n'Fire kiln

About

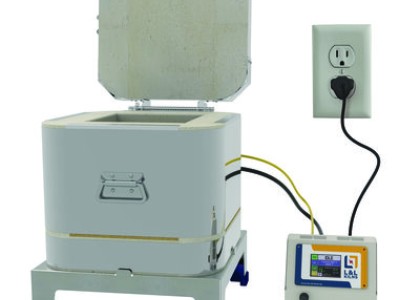

Model PF8 Craft/Test Kiln with a Genesis Mini Touchscreen Controller

• 8" Square x 9" High (0.33 cu ft)
• This kiln can fire to Cone 10 on most standard 15-amp circuits, and draws only 12.5 amps
• Extra-insulated sides with 2-1/2" K23 brick and 1" of backup insulation; Top & Bottom are 3" K23 brick
• Kiln plugs into a separate control panel with power and thermocouple wire jack
• Door safety switch shuts off power to the elements when the door is opened
• Hard ceramic element channels
• Includes one 7" by 7" by 3/8" shelf and three 3" posts
• C-ETL-us Listed to UL499 and Canadian Standards
• On-Line Instructions
• Includes Genesis-Mini Touchscreen Control

Insulation: 2-1/2" K23 Firebrick & 1" 1900 Back-Up Insulation on sides, 3" K23 Firebrick on top & bottom

Sections: One section Inside Dimensions: 8.00" Wide x 8.00" Deep x 9.00" High (20.32 cm Wide x 20.32 cm Deep x 22.86 cm High)

Outside Dimensions: 16.00" Wide x 19.00" Deep x 20.00" High (40.64 cm Wide x 48.26 cm Deep x 50.8 cm High)

Weight: 77 lbs (35 kg)

Delivery
Standard delivery is palletised, curbside only.
Please discuss delivery options before ordering, in some circumstances we may arrange delivery by carrier or we can deliver and install including electrical connection to existing supply. It is important to ensure that you have sufficient room to access the final location. In some cases, kilns may be able to be stripped down and assembled on site to fit through narrow doorways etc. We can send you a kiln delivery questionnaire which asks for information on the route from vehicle to final position. We will be able to quote for delivery when we have all the relevant details.
